Sensepeek 6003 PCBite Kit incl. 4x SQ10 Probe and Test Wires

  • FabrikantSensepeek

Omschrijving

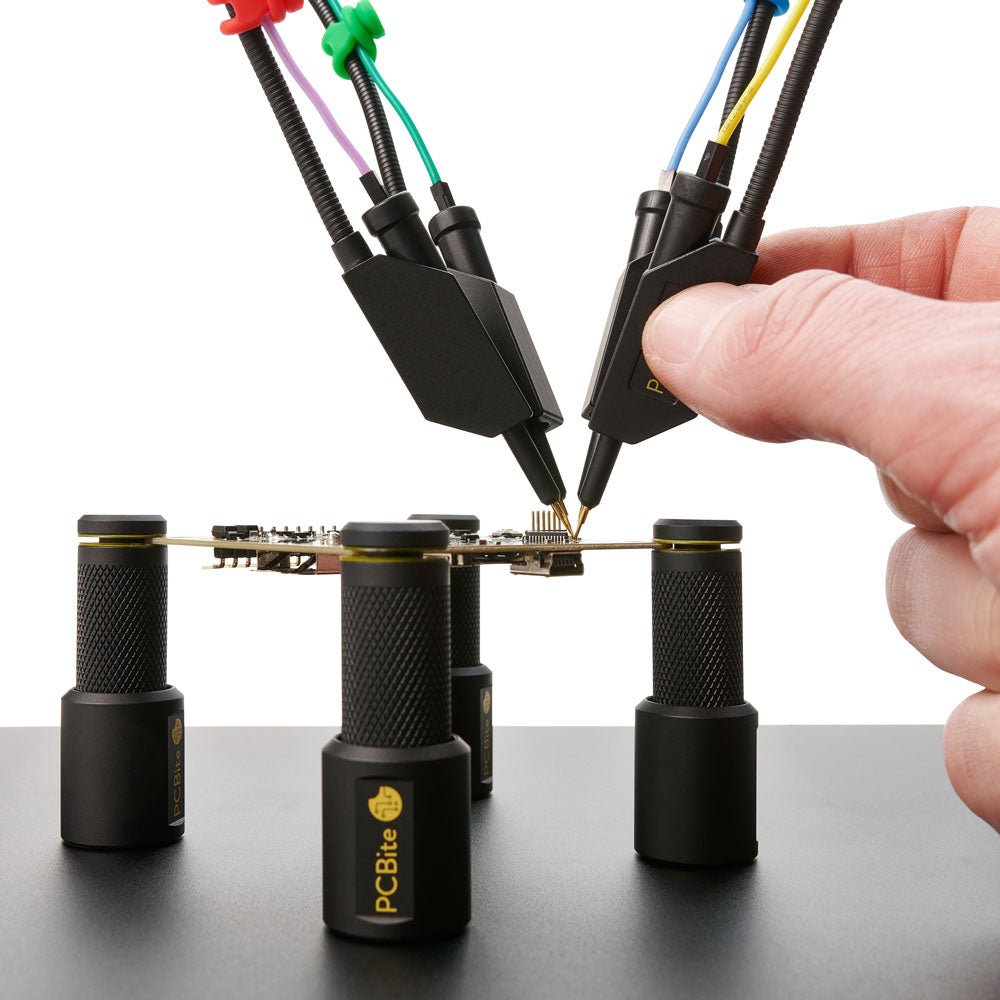

The SQ series of handsfree PCBite probes from Sensepeek are insulated, come with included color-coded cable holders and have a lower point of gravity making them even more stable compared with the original SP series of probes. All the loved features of handsfree measurement, exchangeable fine pitch spring tipped test needle and the minimalistic design is maintained to make traditional sized and handheld probes obsolete.

Features

  • All handsfree probes from Sensepeek makes instant measurements or long triggering sessions a breeze.
  • No more soldering wires to connect your probe or complicated tools to setup, just positioning the probe needle on any test point or component in the signal path and release.
  • Saves time and frustration during development, verification and repairs.

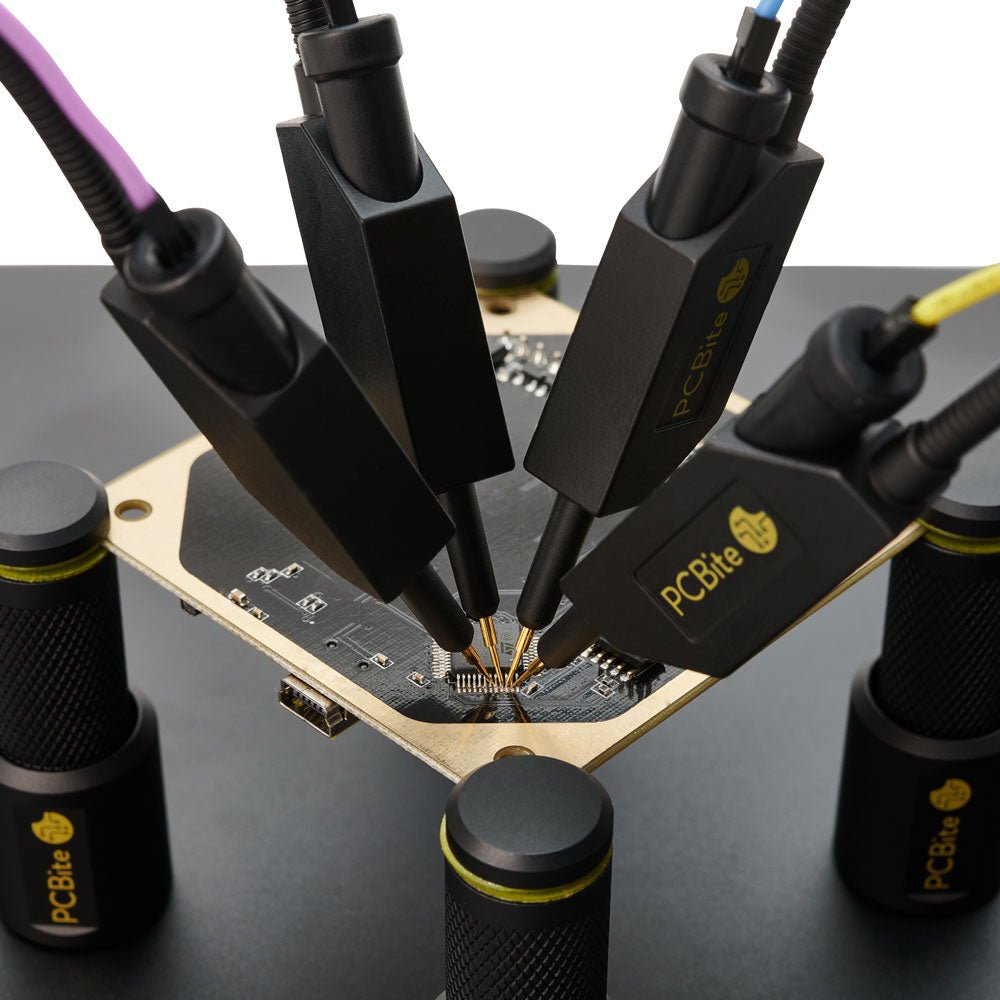

  • The minimalist design and the spring-loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals.

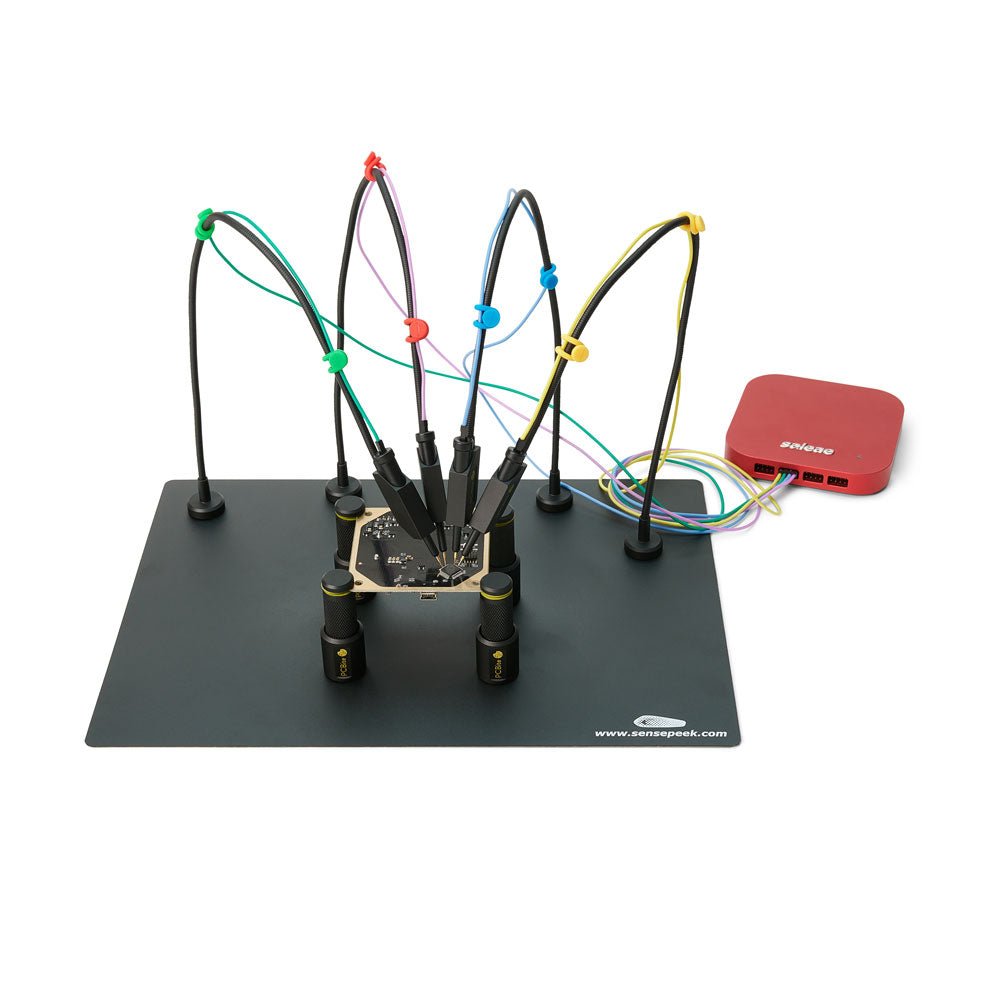

  • Both length and weight of the SQ probes are perfectly balanced to be used with the included PCB holders and base plate which is a must for handsfree function.
  • The probe holder comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition.
  • The SQ series of probes can be used handheld without the probe holder as they have an insulated grip but their full potential is used when measuring handsfree.
  • One side of the included baseplate is matte and the other is mirror polished. The mirror polished surface makes it easy to see components on the circuit board underside. For added protection during measurement the included insulation cover can be mounted on one of the surfaces.

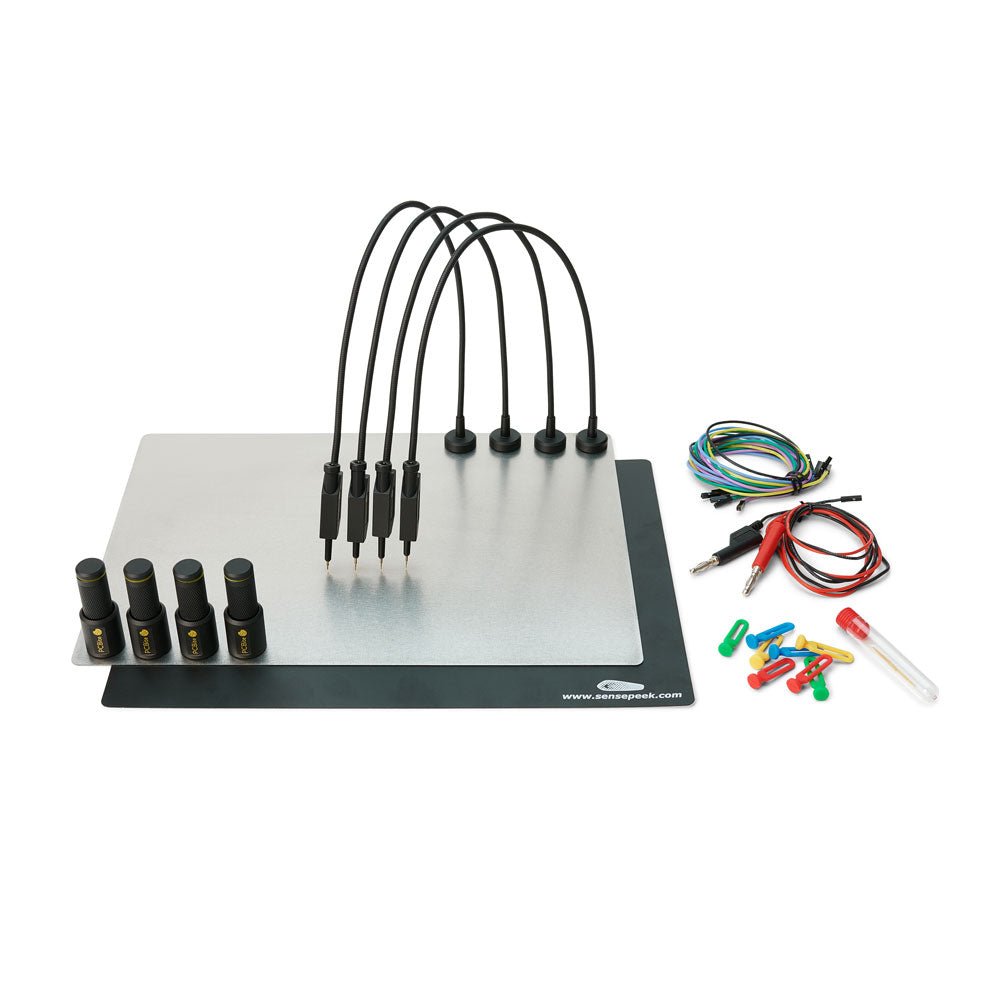

Included

  • 4x PCBite PCB holders
  • 1x Set of yellow insulation washers for the PCB holders
  • 1x Large Base plate (A4)
  • 1x Insulation cover for the base plate (A4)
  • 1x Micro fiber cloth

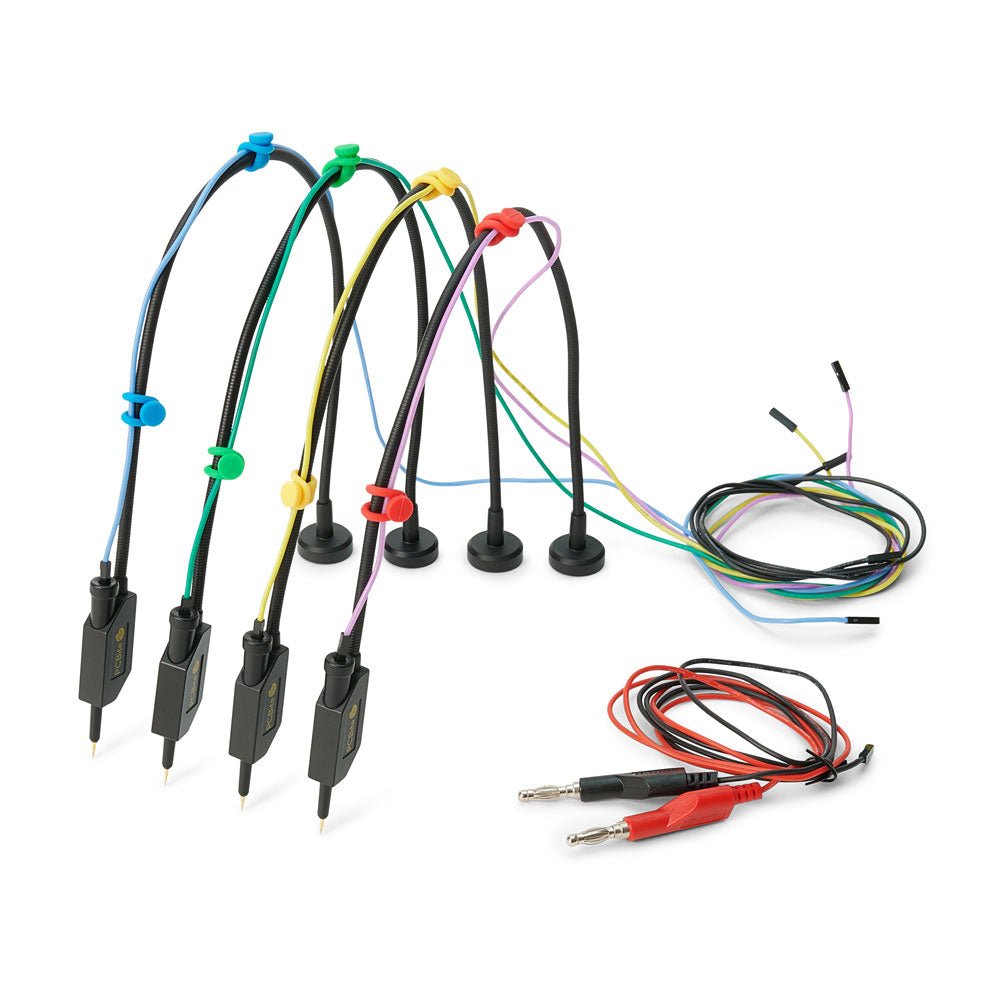

  • 4x SQ10 probes and pin tipped test needles (black)
  • 2x Banana to dupont test wires (red/black)
  • 5x Dupont to dupont test wires
  • 1x Set of cable holders (4 colors)
  • 4x Extra test needles

Downloads

Productformulier

The SQ series of handsfree PCBite probes from Sensepeek are insulated, come with included color-coded cable holders and have a... Lees meer

€ 164,95 incl. BTW
Leden € 148,46

      Details

      SKU: 20255
      EAN: 6003000001002

      Omschrijving

      The SQ series of handsfree PCBite probes from Sensepeek are insulated, come with included color-coded cable holders and have a lower point of gravity making them even more stable compared with the original SP series of probes. All the loved features of handsfree measurement, exchangeable fine pitch spring tipped test needle and the minimalistic design is maintained to make traditional sized and handheld probes obsolete.

      Features

      • All handsfree probes from Sensepeek makes instant measurements or long triggering sessions a breeze.
      • No more soldering wires to connect your probe or complicated tools to setup, just positioning the probe needle on any test point or component in the signal path and release.
      • Saves time and frustration during development, verification and repairs.
      • The minimalist design and the spring-loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals.
      • Both length and weight of the SQ probes are perfectly balanced to be used with the included PCB holders and base plate which is a must for handsfree function.
      • The probe holder comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition.
      • The SQ series of probes can be used handheld without the probe holder as they have an insulated grip but their full potential is used when measuring handsfree.
      • One side of the included baseplate is matte and the other is mirror polished. The mirror polished surface makes it easy to see components on the circuit board underside. For added protection during measurement the included insulation cover can be mounted on one of the surfaces.

      Included

      • 4x PCBite PCB holders
      • 1x Set of yellow insulation washers for the PCB holders
      • 1x Large Base plate (A4)
      • 1x Insulation cover for the base plate (A4)
      • 1x Micro fiber cloth
      • 4x SQ10 probes and pin tipped test needles (black)
      • 2x Banana to dupont test wires (red/black)
      • 5x Dupont to dupont test wires
      • 1x Set of cable holders (4 colors)
      • 4x Extra test needles

      Downloads

      Customer Reviews

      Based on 1 review
      100%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      H
      Han
      Proben zonder solderen

      Normaal moet je steeds kleine draadjes aan een pcb solderen om op de juiste plaatsen te kunnen meten. Met deze tool is dat niet nodig. De probes blijven door hun eigen gewicht netjes op de plaats. Ook het pcb klem systeem werkt prima.
