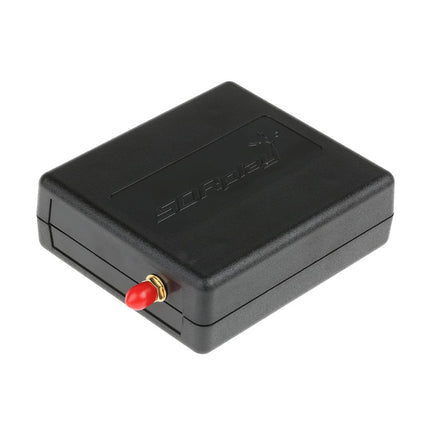

SDRplay RSP1B 14-bit SDR-ontvanger (1 kHz tot 2 GHz)

Omschrijving

De SDRplay RSP1B is een verbeterde versie van de populaire RSP1A – een krachtige, breedbandige, complete 14-bits SDR die het RF-spectrum van 1 kHz tot 2 GHz bestrijkt. De RSP1B is uitgevoerd in een robuuste, zwartgelakte stalen behuizing en biedt aanzienlijk verbeterde ruisprestaties.

Het enige wat nodig is, is een computer en een antenne voor uitstekende communicatie- en ontvangstfunctionaliteit. Het wordt geleverd met SDRuno voor Windows en de multi-platform SDRconnect-software voor Windows, macOS en Linux (gratis geleverd door SDRplay). U kunt tot 10 MHz spectrum tegelijk monitoren.

Een gedocumenteerde API stelt ontwikkelaars in staat om nieuwe demodulatoren of applicaties voor het platform te creëren.

Kenmerken

  • Covers all frequencies from 1 kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2 GHz, with no gaps
  • Receive, monitor and record up to 10 MHz of spectrum at a time
  • Free use of windows-based SDRuno software which provides an ever-increasing feature-set
  • Strong and growing software support network
  • Calibrated S meter/ RF power and SNR measurement with SDRuno (including datalogging to .CSV file capability)
  • Documented API provided to allow demodulator or application development on multiple platforms
  • Excellent dynamic range for challenging reception conditions
  • Works with popular 3rd party SDR software (including HDSDR, SDR Console and Cubic SDR)
  • ExtIO based plugin available
  • Software upgradeable for future standards
  • Strong and growing software support network
  • API provided to allow demodulator or application development
  • Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi
  • Up to 16 individual receivers in any 10 MHz slice of spectrum using SDRuno
  • Calibrated S meter and power measurements with SDRuno
  • Stand-alone windows-based spectrum analyser software available (with sweep, sample and hold features)
  • Ideal for monitoring of ISM/IoT/Telemetry bands <2 GHz
  • Ideal for portable operation

Specificaties

Frequency Range 1 kHz – 2 GHz
Antenna Connector SMA
Antenna Impedance 50 Ohms
Current Consumption (Typical) 185 mA (excl. Bias-T)
USB Connector USB Type B
Maximum Input Power +0 dBm Continuous
+10 dBm Short Duration
ADC Sample Rates 2-10.66 MSPS
ADC Number of Bits 14 bit 2-6.048 MSPS
12 bit 6.048-8.064 MSPS
10 bit 8.064-9.216 MSPS
8 bit >9.216 MSPS
Bias-T 4.7 V
100 mA guaranteed
Reference 0.5ppm 24 MHz TCXO.
Frequency error trimmable to 0.01ppm in field.
Operating Temperature Range -10✓C to +60✓C
Dimensions 98 x 88 x 34 mm
Weight 110 g

Downloads

RSP1B vs RSPdx vs RSPduo

RSP1B RSPdx RSPduo
Continuous coverage from 1 kHz to 2 GHz ✓ ✓ ✓
Up to 10 Mhz visible bandwidth ✓ ✓ ✓
14-bit ADC silicon technology plus multiple high-performance input filters ✓ ✓ ✓
Software selectable AM/FM & DAB broadcast band notch filters ✓ ✓ ✓
4.7 V Bias-T for powering external remote antenna amplifier ✓ ✓ ✓
Powers over the USB cable with a simple type B socket ✓ ✓ ✓
50✓ SMA antenna input(s) for 1 kHz to 2 GHz operation (software selectable) 1 2 2
Additional software selectable Hi-Z input for up to 30 Mhz operation ✓
Additional software selectable 50✓ BNC input for up to 200 MHz operation ✓
Additional LF/VLF filter for below 500 kHz ✓
24 MHz reference clock input (+ output on RSPduo) ✓ ✓
Dual tuners enabling reception on 2 totally independent 2 MHz ranges ✓
Dual tuners enabling diversity reception using SDRuno ✓
Robust and strong plastic case (with internal RF shielding layer) ✓
Rugged black painted steel case ✓ ✓
Overall performance below 2 MHz for MW and LF + ++ +
Multiple simultaneous applications + + ++
Performance in challenging fading conditions (*using diversity tuning) + + *++
