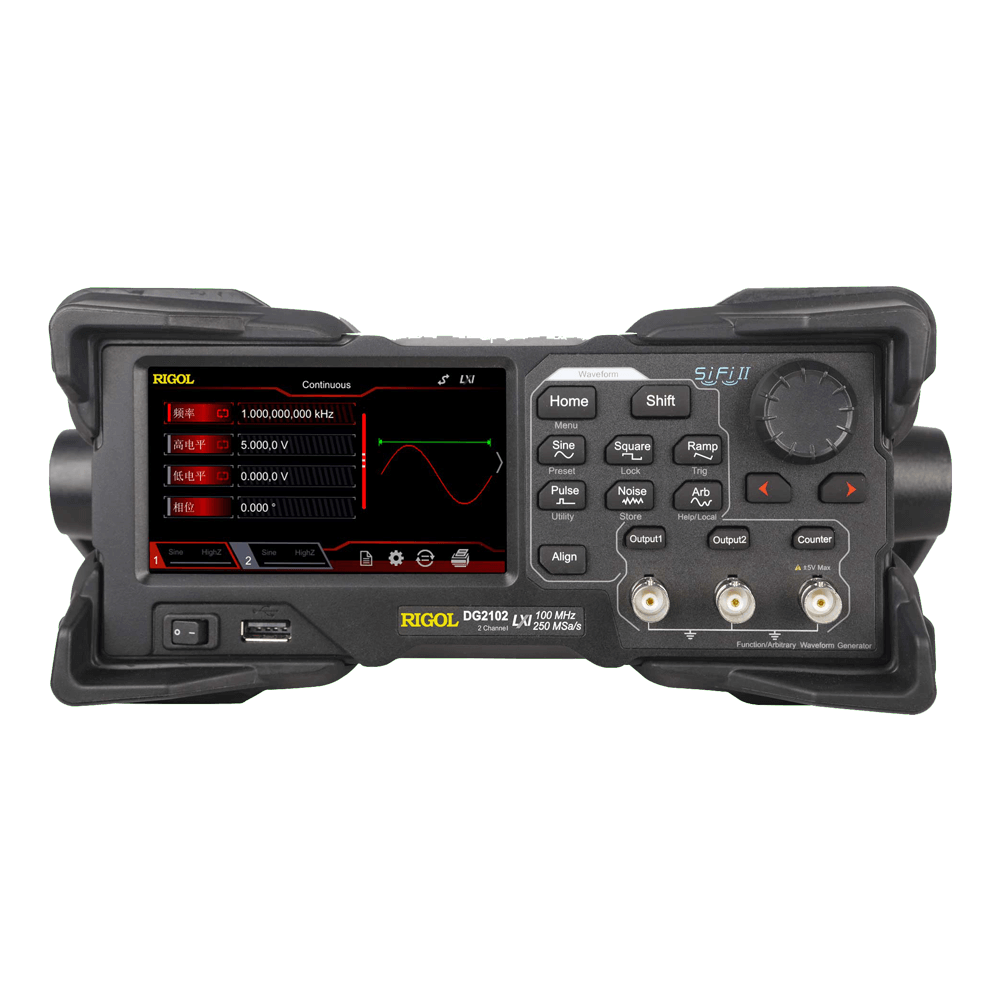

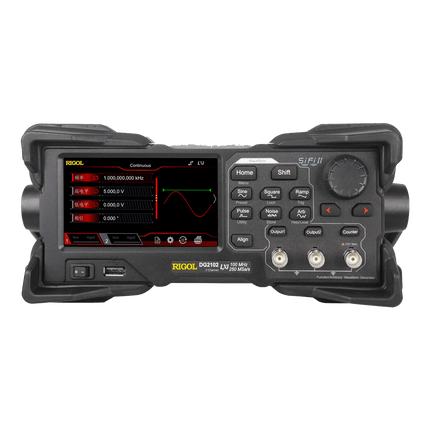

Rigol DG2052 Function/Arbitrary Waveform Generator (50 MHz)

  • FabrikantRigol

Omschrijving

Highlights

  • Output Frequency (Sine): 50 MHz
  • Output Frequency (Square): 15 MHz
  • Channels: 2
  • Arbitrary Waveform Length: 16 Mpts

Kenmerken

  • Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary waveforms point by point; recover the signal without distortion; sample rate accurate and adjustable; jitter of all the output waveforms (including Sine, Pulse, etc.) as low as 200 ps
  • 16 Mpts memory depth per channel for arbitrary waveforms
  • Standard dual-channel with the same performance, equivalent to two independent signal sources
  • High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
  • Built-in high-order harmonic generator (at most 8-order harmonics)
  • Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
  • Up to 160 built-in arbitrary waveforms, covering the common signals in engineering application, medical electronics, auto electronics, math processing, and other various fields
  • Sample rate up to 250 MSa/s, vertical resolution 16 bits
  • Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through the PC software
  • Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM.
  • Standard waveform combine function, capable of outputting specified waveforms combined with the basic waveforms
  • Standard channel tracking function, when enabled, all the parameters of both channels are updated based on users' configurations
  • Standard interface: USB Host&Device and LAN (LXI Core 2011 Device); USB-GPIB function supported
  • 4.3'' TFT

Inbegrepen

  • 1x Rigol DG2052 Function/Arbitrary Waveform Generator
  • 1x Power cord
  • 1x USB cable


Productformulier

Highlights Output Frequency (Sine): 50 MHz Output Frequency (Square): 15 MHz Channels: 2 Arbitrary Waveform Length: 16 Mpts Kenmerken Unique... Lees meer

€ 652,19 (incl. BTW)
Bestel nu (bij Eleshop)
Als u op "Bestel nu" klikt, wordt u doorgestuurd naar onze partnerwinkel Eleshop. Elektor ontvangt een kleine commissie bij een aankoop via deze link. Voor u ontstaan er geen extra kosten. De algemene voorwaarden van Eleshop zijn van toepassing.

    Details

    SKU: 19345
    EAN: 6938215603522
