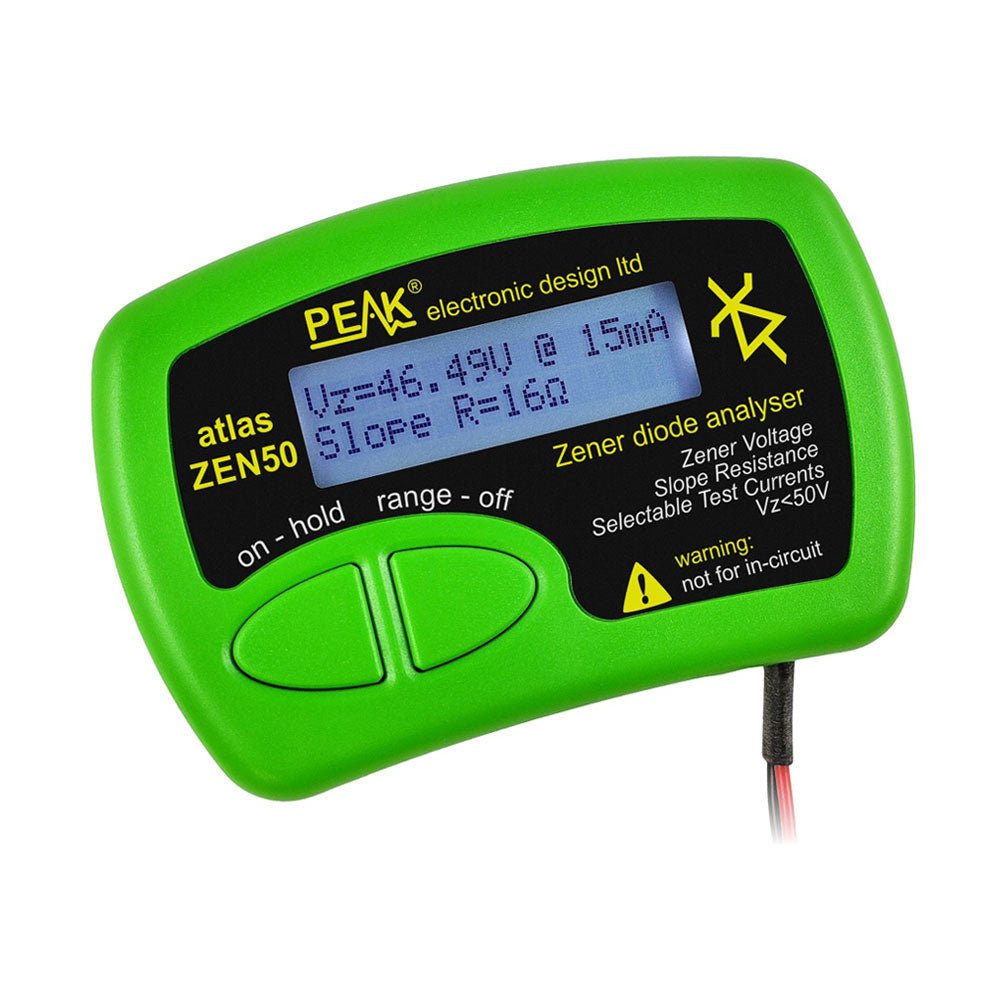

Peak Atlas ZEN50 Zener Diode Analyzer

Omschrijving

The Peak Atlas ZEN50 is ideal for testing Zener diodes (including avalanche diodes), transient suppressors, LEDs and LED strings. It generates constant current pulses (selectable from 2 mA, 5 mA, 10 mA and 15 mA) at voltages from 0V to 50V. So even high voltage Zeners or high voltage LED strings can be tested.

Test currents are supplied in narrow pulses to ensure that the component under test remains at a constant temperature.

The voltage of the part is displayed on the screen together with the test current and also a measure of the component's slope resistance (also known as dynamic impedance).

Specificaties

Analyzer type Zeners, LEDs, TVS etc
Test currents 2 mA, 5 mA, 10 mA, 15 mA
Voltage range 0.00 to 50.00 V
Slope resistance range 0 to 8000 Ohms
Battery type Single AAA (supplied). Life typically 1400 ops
Test method Triple pulse burst @ 10pps (typ)
Test current duty cycle 3%
Display type Alphanumeric LCD (with backlight)

Inbegrepen

  • Peak Atlas ZEN50 Zener Diode Analyzer
  • Fitted flexible test leads with gold plated crocs
  • Comprehensive illustrated user guide
  • AAA Alkaline battery

Downloads

Productformulier

The Peak Atlas ZEN50 is ideal for testing Zener diodes (including avalanche diodes), transient suppressors, LEDs and LED strings. It... Lees meer

€ 79,00 (incl. BTW)
Bestel nu (bij Eleshop)
Als u op "Bestel nu" klikt, wordt u doorgestuurd naar onze partnerwinkel Eleshop. Elektor ontvangt een kleine commissie bij een aankoop via deze link. Voor u ontstaan er geen extra kosten. De algemene voorwaarden van Eleshop zijn van toepassing.

    Details

    SKU: 18094
    EAN: 0700153222891

    Omschrijving

    The Peak Atlas ZEN50 is ideal for testing Zener diodes (including avalanche diodes), transient suppressors, LEDs and LED strings. It generates constant current pulses (selectable from 2 mA, 5 mA, 10 mA and 15 mA) at voltages from 0V to 50V. So even high voltage Zeners or high voltage LED strings can be tested.

    Test currents are supplied in narrow pulses to ensure that the component under test remains at a constant temperature.

    The voltage of the part is displayed on the screen together with the test current and also a measure of the component's slope resistance (also known as dynamic impedance).

    Specificaties

    Analyzer type Zeners, LEDs, TVS etc
    Test currents 2 mA, 5 mA, 10 mA, 15 mA
    Voltage range 0.00 to 50.00 V
    Slope resistance range 0 to 8000 Ohms
    Battery type Single AAA (supplied). Life typically 1400 ops
    Test method Triple pulse burst @ 10pps (typ)
    Test current duty cycle 3%
    Display type Alphanumeric LCD (with backlight)

    Inbegrepen

    • Peak Atlas ZEN50 Zener Diode Analyzer
    • Fitted flexible test leads with gold plated crocs
    • Comprehensive illustrated user guide
    • AAA Alkaline battery

    Downloads
