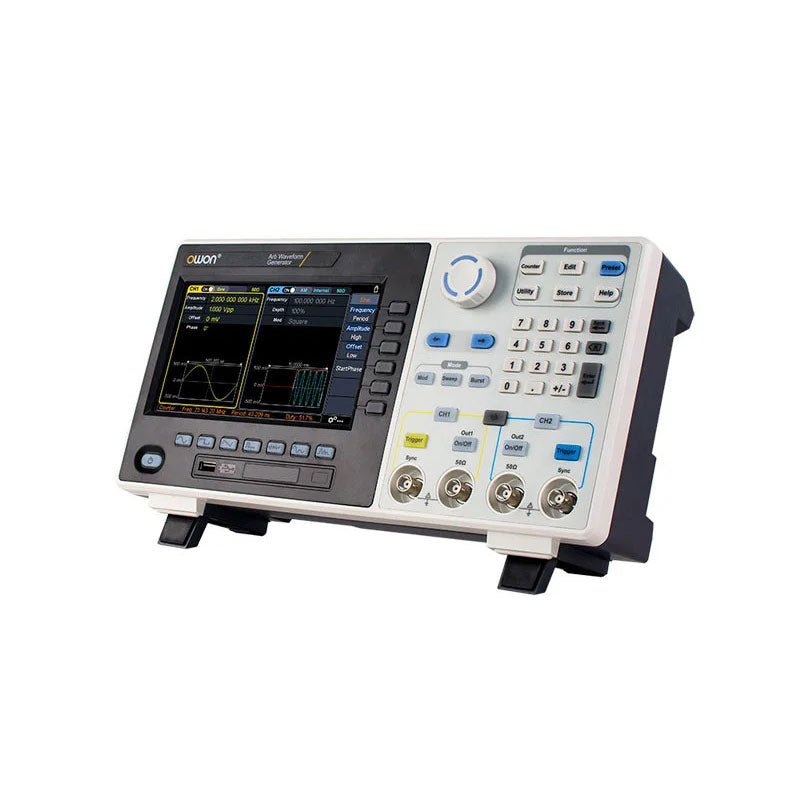

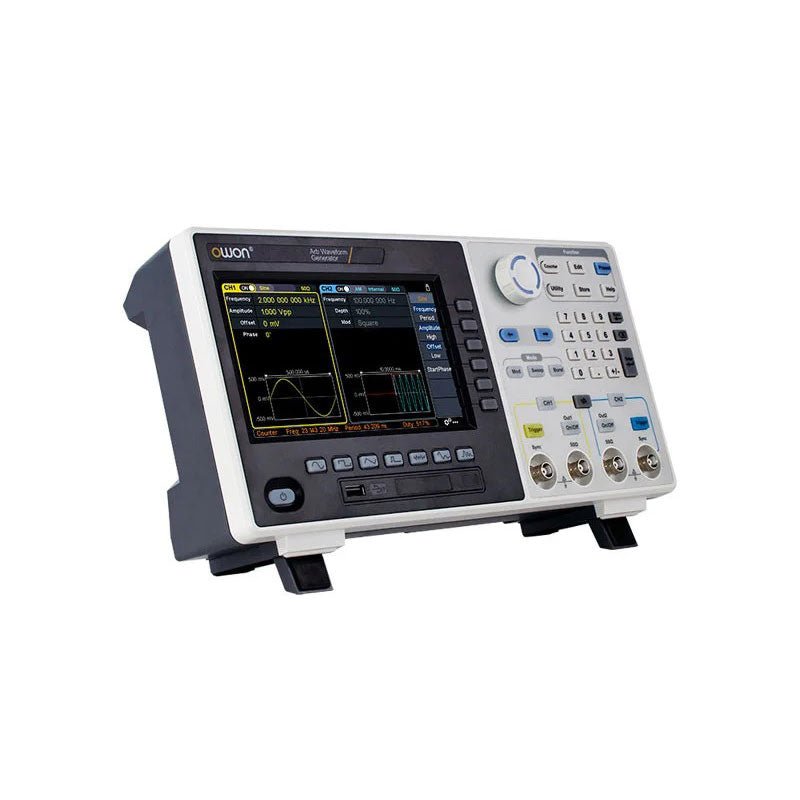

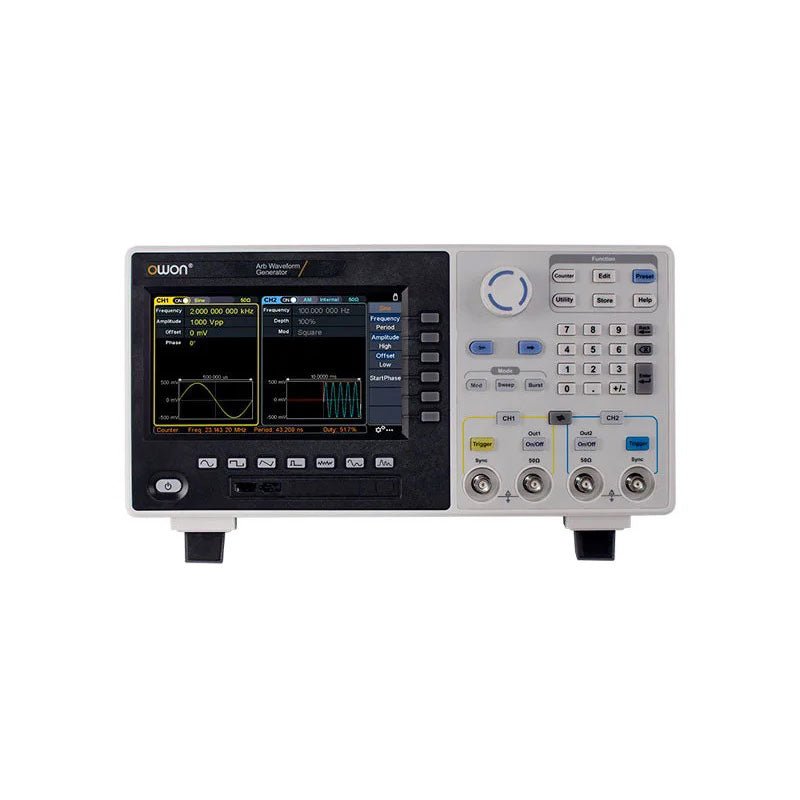

OWON XDG2035 2-ch Arbitrary Waveform Generator (35 Mhz)

  • FabrikantOWON

Omschrijving

The 2-channel OWON XDG2035 is a function/waveform generator that can generate signals with a maximum frequency of 35 Hz. The generator has a resolution of 1 µHz and a sample rate of 500 MSa/s.

The OWON XDG2035 is capable of generating 6 standard waveforms and 150 arbitrary waveforms. With the included software you can write advanced functions up to 10 million points. Waveforms can be saved to the function generator's internal memory using a PC via USB or LAN.

The OWON XDG2035 also supports SCPI commands and LabView. The function generator has an integrated high-quality frequency counter, which can operate from 100 to 200 MHz.

Features

  • Max. 35 MHz frequency output
  • 500 MSa/s Sample rate, Vertical resolution 1μHz
  • 14 bits Vertical Resolution, 10 Marb waveform length
  • Comprehensive waveform output: 6 basic waveforms,and 150 built-in arbitrary waveforms
  • Comprehensive modulation functions: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep, and Burst
  • High-accuracy frequency counter integrated, supported range 100-200 MHz
  • SCPI and LabVIEW supported
  • 7 inch multi-touch screen (800 x 480 pixels)

Specifications

Channel 2
Frequency Output 35 MHz
Sample Rate 500 MSa/s
Vertical Resolution 14 bits
Waveform
Standard Waveform sine, square, pulse, ramp, noise, and harmonic
Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform
Frequency (resolution 1 μHz)
Sine 1 μHz-100 MHz
Square 1 μHz ~ 30 MHz
Pulse 1 μHz ~ 25 MHz
Ramp 1 μHz ~ 3 MHz
Noise (-3 dB, typical) 100 MHz
Arbitrary Waveform 1 μHz ~ 15 MHz
Harmonic 1 μHz ~ 50 MHz
Accuracy ±2ppm, 25°C ±5°C
Waveform Length 2 points - 10M points
Amplitude
Into 50Ω load 1mVpp ~ 10Vpp (≤25 MHz); 1mVpp ~ 5Vpp (≤60 MHz); 1mVpp ~ 2.5Vpp (≤100 MHz)
Modulation
Type AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM
Frequency Counter
Function Frequency, period, +width, -width, +duty, and -duty
Frequency Range 100 ~ 200 MHz
Frequency Resolution 7 digits
Input/Output
Input mode frequency counter, external modulation input, external trigger input, internal clock output, external reference clock input/output

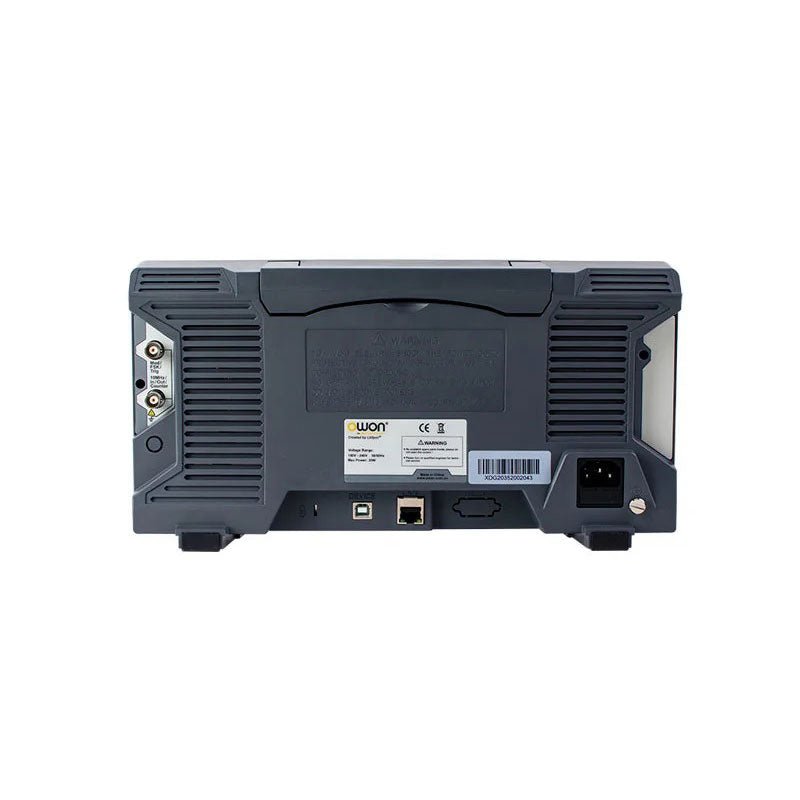

Communication Interface USB Host, USB Device, LAN, RS232 (optional)
Mechanical specifications
Dimensions 340 x 177 x 90 mm
Weight 2.3 kg

Included

  • 1x OWON XDG2035
  • 1x Power Cord
  • 1x CD-ROM
  • 1x Quick start guide
  • 1x USB Cable
  • 1x BNC-BNC Cable

Downloads

Productformulier

The 2-channel OWON XDG2035 is a function/waveform generator that can generate signals with a maximum frequency of 35 Hz. The generator... Lees meer

€ 339,00 (incl. BTW)
