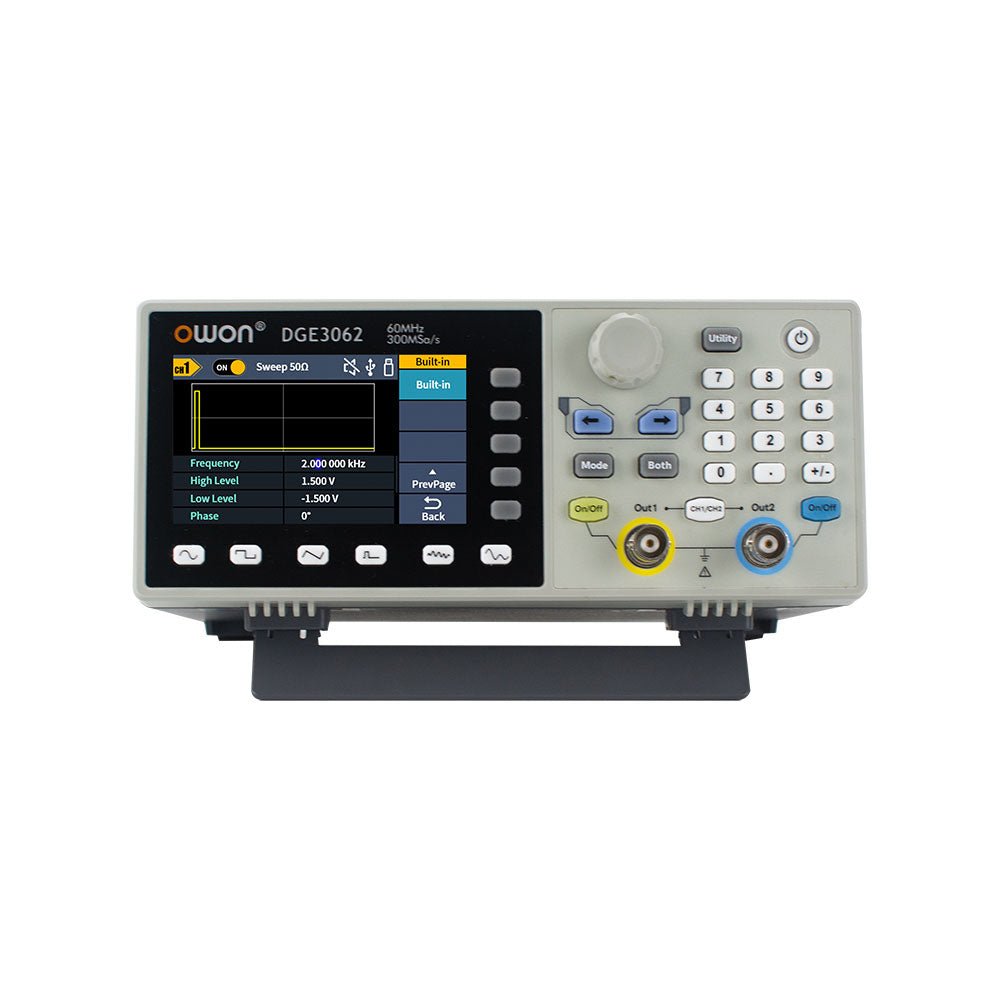

OWON DGE3062 2-ch Arbitrary Waveform Generator (60 Mhz)

  • FabrikantOWON

Omschrijving

The OWON DGE3062 is a 14-bit function generator with a bandwidth of 60 MHz. It has 5 basic waveforms, 160 built-in arbitrary waveforms and the following comprehensive modulation functions: AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSBAM, QPSK, SUM, sweep, Burst.

Features

  • Max. 60 MHz frequency output, 300 MSa/s Sample rate
  • 14 bits Vertical Resolution, 100K Arb waveform length
  • Comprehensive waveform output: 5 basic waveforms, and 160 built-in arbitrary waveforms
  • Comprehensive modulation functions: AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSBAM, QPSK, SUM, sweep, Burst
  • SCPI and LabVIEW supported
  • 3.6 inch LCD (480 x 272 pixels)

Specifications

Channel 2
Frequency Output 60 MHz
Sample Rate 300 MSa/s
Vertical Resolution 14 bits
Waveform
Standard Waveform Sine, square, pulse, ramp, noise
Arbitrary Waveform Exponential rise, exponential fall, sin(x)/x, step wave, and others, total 160 built-in waveforms
Frequency (resolution 1 ?Hz)
Sine 1 ?Hz-60 MHz
Square 1 ?Hz ~ 20 MHz
Pulse 1 ?Hz ~ 20 MHz
Ramp 1 ?Hz ~ 2 MHz
Noise 20 MHz (-3 dB, typical)
Arbitrary Waveform 1 ?Hz ~10 MHz
Arbitrary
Waveform Length 2 points – 100K points
Sample Rate 300 MSa/s
Amplitude
Into 50? load 1mVpp ~ 10Vpp (?10Hz), 1mVpp ~ 5Vpp (?60 MHz)
DC Offset Range (AD+DC ±(10 Vpk – Amplitude Vpp/2) high resistance
±(5 Vpk – Amplitude Vpp/2) 50 ?
DC offset resolution 1 mV or 4 digits
Load Impedance 50 ? (typical)
DC offset Accuracy ±(1% of |setting| + 1 mV + amplitude Vpp * 0.5%)
Modulation
Type AM,FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, Burst
Frequency Counter
Function Frequency, period
Frequency Range 100 MHz ~ 100 MHz
Frequency Resolution 6 digits
Input/Output
Display 3.6” LCD
Input mode External modulation input, external trigger input, external reference clock input/output
Communication Interface USB Host, USB Device
Mechanical specifications
Dimensions (W x H x D) 200 x 92 x 157 mm
Weight 0.8 kg

Included

  • 1x OWÒN DGE3062
  • 1x Power Cord
  • 1x Quick Guide
  • 1x USB Cable
  • 1x Q9 Cable
  • 1x BNC to Alligator Clip

Downloads

Productformulier

The OWON DGE3062 is a 14-bit function generator with a bandwidth of 60 MHz. It has 5 basic waveforms, 160... Lees meer

€ 229,00 incl. BTW
Leden € 206,10

      Details

      SKU: 20500
      EAN: 020500
