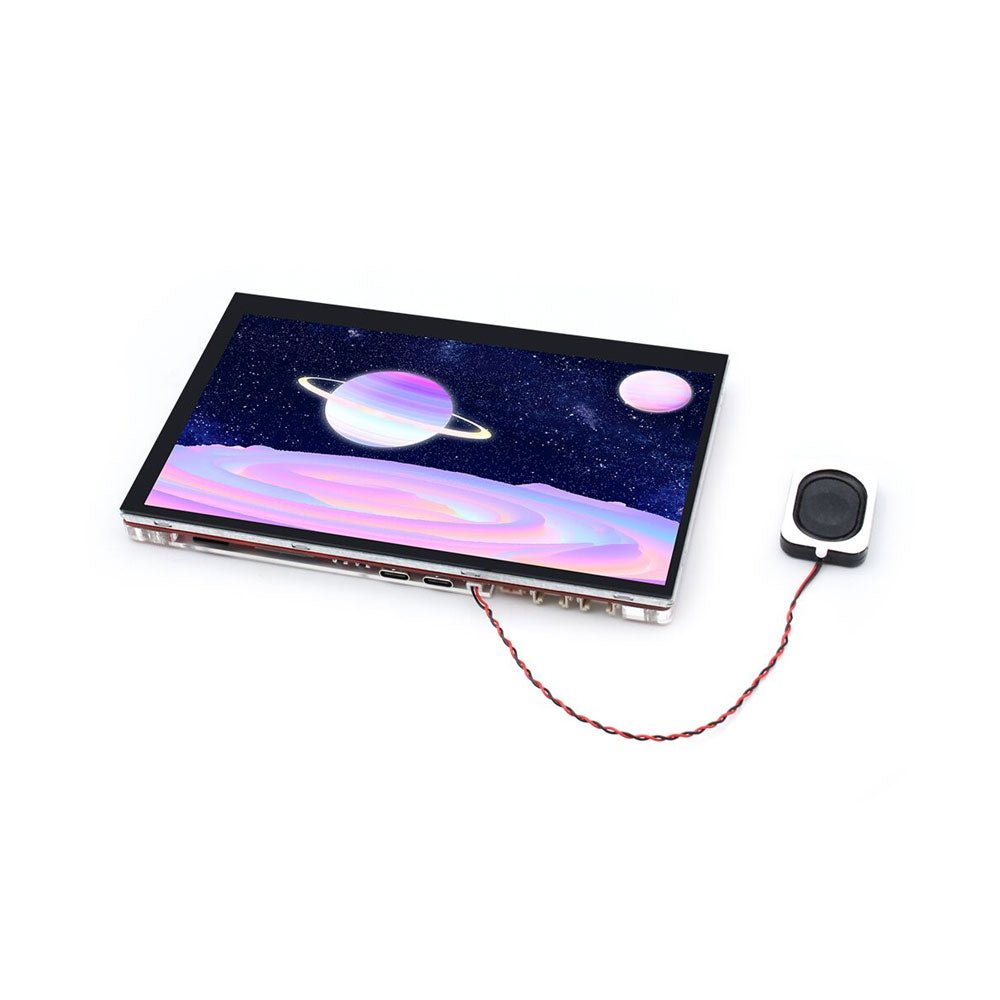

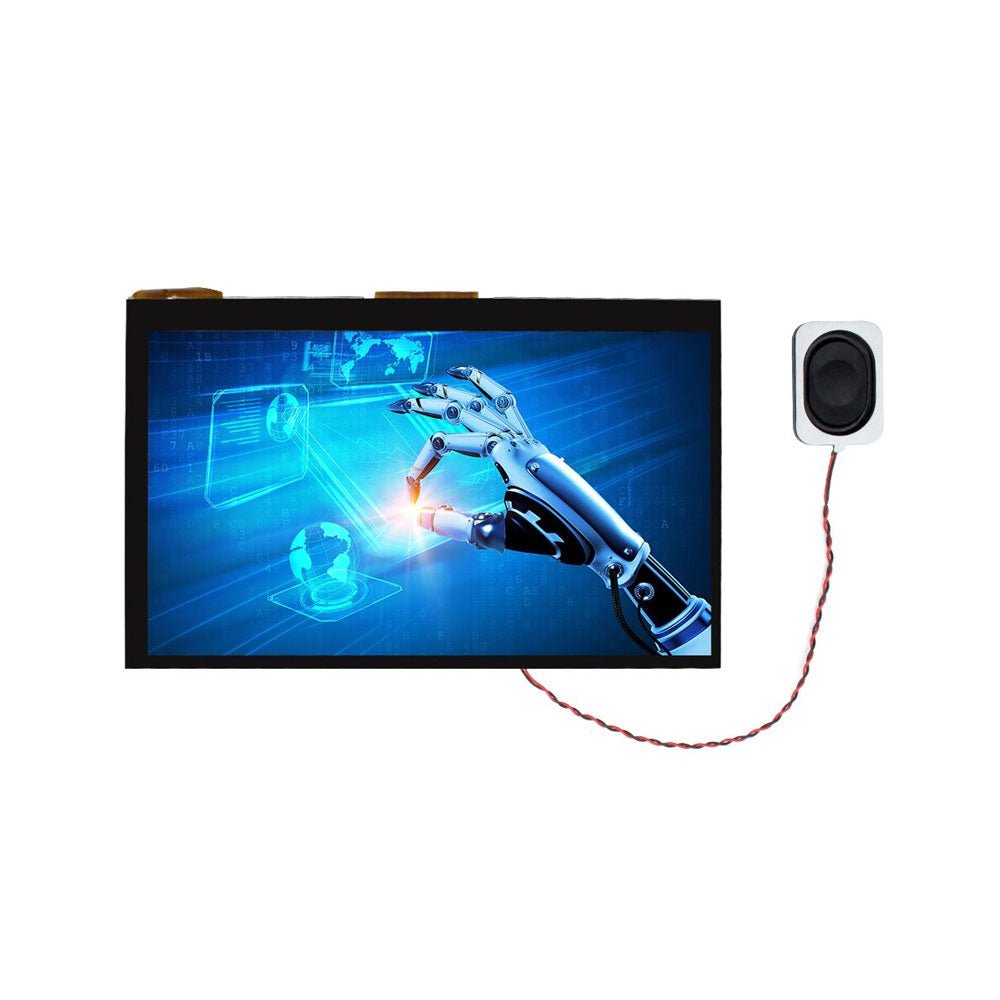

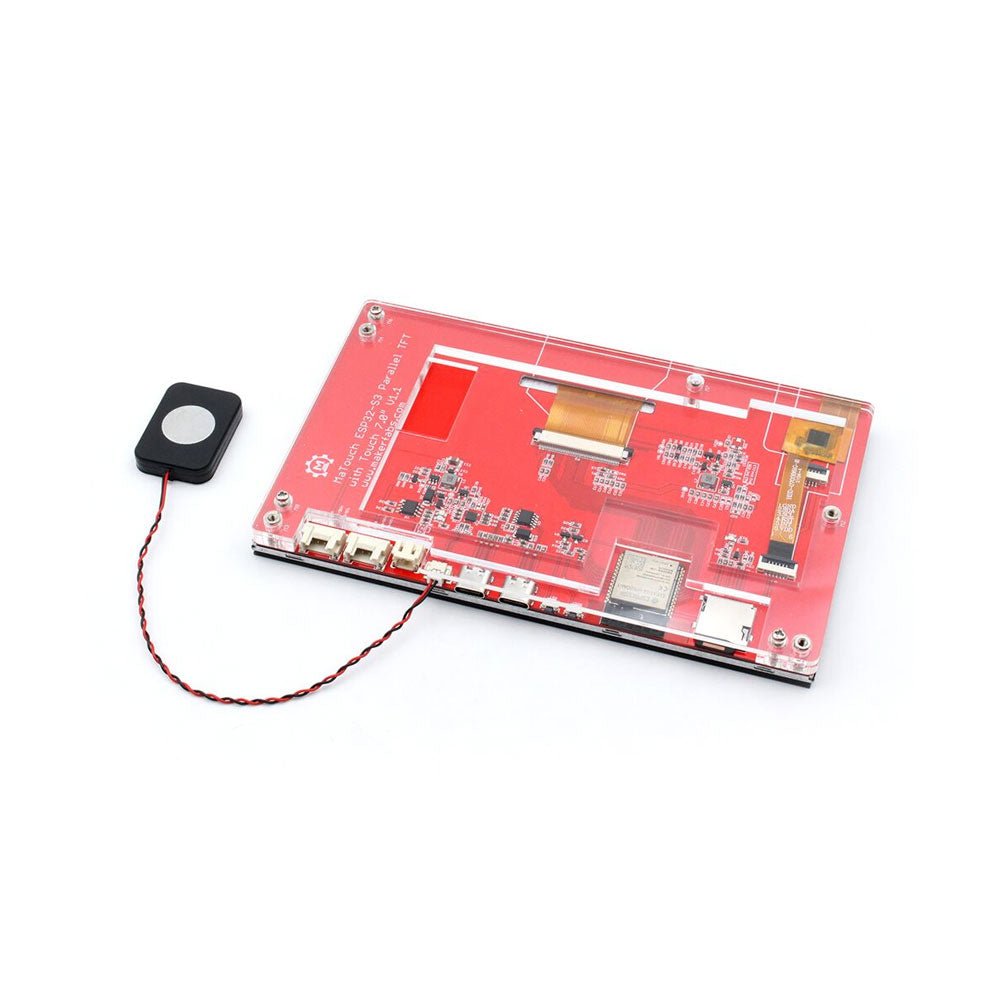

MaTouch ESP32-S3 Parallel TFT 7" Touch Display (1024x600)

  • FabrikantMakerfabs

Omschrijving

This ESP32 S3 7-inch IPS 5-point capacitive touch display with an ultra-high resolution of 1024 x 600 pixels is ideal for IoT applications. It is ideal for applications such as home automation. An integrated SD card enables recording/playback of stored data. There are also two Mabee/Grove connectors to connect various sensors to this board to create personal prototype projects in no time.

Specifications

  • Controller: ESP32-S3-WROOM-1, PCB antenna, 16 MB Flash, 8 MB PSRAM, ESP32-S3-WROOM-1-N16R8
  • Wireless: Wifi & Bluetooth 5.0
  • LCD: 7-inch High Lightness IPS
  • FPS: >30
  • Resolution: 1024 x 600
  • LCD interface: RGB 565
  • Touch panel: Capacitive 5-point touch
  • Touch panel driver: GT911
  • USB: Dual USB-C (one for USB-to-UART and one for native USB)
  • UART to UART chip: CP2104
  • Power supply: USB-C 5.0 V (4.0 V~5.25 V)
  • Button: Flash button and reset button
  • Mabee interface: 1x I²C, 1x GPIO
  • MicroSD: Yes
  • Arduino support: Yes
  • Type-C Power Delivery: Not supported
  • Operation temperature: ?40 to +85°C

Downloads


Productformulier

This ESP32 S3 7-inch IPS 5-point capacitive touch display with an ultra-high resolution of 1024 x 600 pixels is ideal for IoT... Lees meer

€ 59,95 incl. BTW
Leden € 53,96

      Details

      SKU: 20778
      EAN: 020778

      Omschrijving

      This ESP32 S3 7-inch IPS 5-point capacitive touch display with an ultra-high resolution of 1024 x 600 pixels is ideal for IoT applications. It is ideal for applications such as home automation. An integrated SD card enables recording/playback of stored data. There are also two Mabee/Grove connectors to connect various sensors to this board to create personal prototype projects in no time.

      Specifications

      • Controller: ESP32-S3-WROOM-1, PCB antenna, 16 MB Flash, 8 MB PSRAM, ESP32-S3-WROOM-1-N16R8
      • Wireless: Wifi & Bluetooth 5.0
      • LCD: 7-inch High Lightness IPS
      • FPS: >30
      • Resolution: 1024 x 600
      • LCD interface: RGB 565
      • Touch panel: Capacitive 5-point touch
      • Touch panel driver: GT911
      • USB: Dual USB-C (one for USB-to-UART and one for native USB)
      • UART to UART chip: CP2104
      • Power supply: USB-C 5.0 V (4.0 V~5.25 V)
      • Button: Flash button and reset button
      • Mabee interface: 1x I²C, 1x GPIO
      • MicroSD: Yes
      • Arduino support: Yes
      • Type-C Power Delivery: Not supported
      • Operation temperature: ?40 to +85°C

      Downloads


      Customer Reviews

      Based on 1 review
      0%
      (0)
      0%
      (0)
      100%
      (1)
      0%
      (0)
      0%
      (0)
      U
      U.O.
      Display mit seht guten Farben, allerdings einem Nachteil

      Das MaTouch ESP32 S3 7 Zoll IPS hat ein Display mit sehr guten Farben und es ist blickwinkelstabil von allen Seiten.
      Mit den verlinkten Beispielen flackert es allerdings bei bestimmten Farben.
      Dies kann mit Hilfe von Tricks ein Stück umgangen werden.
      Schön wäre es, wenn wenigstens ein Beispiel verlinkt wäre, welches dieses Problem angeht.
