Omschrijving

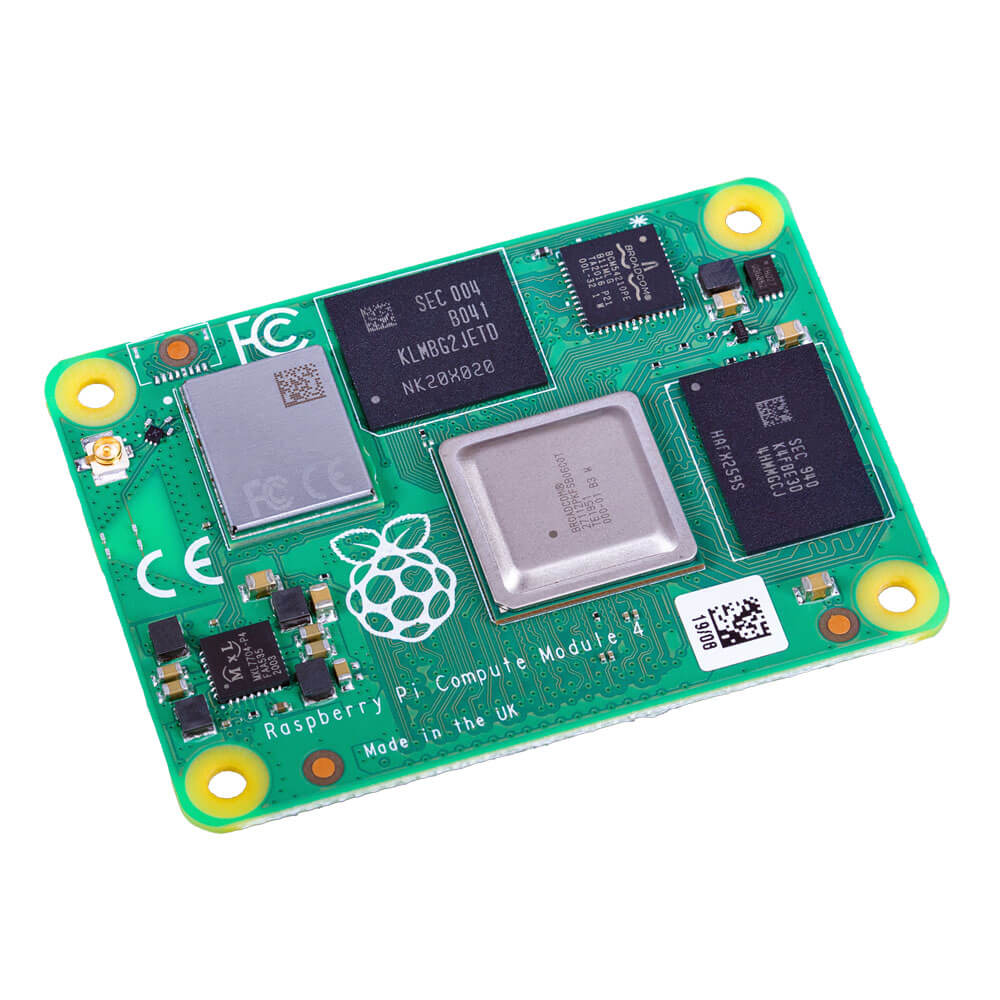

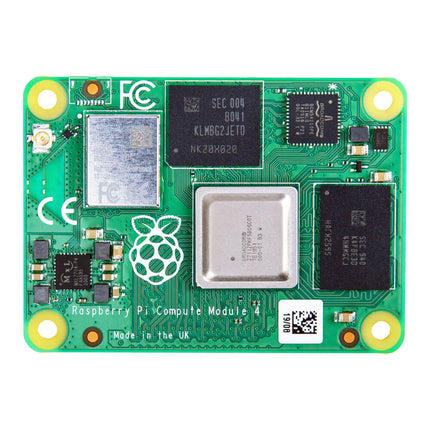

Raspberry Pi Compute Module 4 harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.
Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, up to 8 GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces, and PCIe Gen 2 x1 interface.
The optional dual-band 2.4/5.0 GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market. Either the onboard antenna or an external antenna kit can be used.
Compute Module 4 has optional onboard eMMC of 8 GB, 16 GB or 32 GB.
Specifications
| Form Factor |
55 × 40 mm |
| Processor |
Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5 GHz |
| Memory |
1 GB, 2 GB, 4 GB or 8 GB LPDDR4 (depending on variant) |
| Connectivity |
• Optional wireless LAN, 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
• Onboard Gigabit Ethernet PHY supporting IEEE1588
• 1 × USB 2.0 interface
• PCIe Gen 2 x1 interface
• 28 GPIO signals
• SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC) |
| Video |
• Dual HDMI interface (up to 4Kp60 supported)
• 2-lane MIPI DSI display interface
• 2-lane MIPI CSI camera interface
• 4-lane MIPI DSI display interface
• 4-lane MIPI CSI camera interface |
| Multimedia |
H.265 (4Kp60 decode)
H.264 (1080p60 decode, 1080p30 encode)
OpenGL ES 3.0 graphics |
| Input power |
5 V DC |
| Operating temperature |
-20°C to +85°C |
