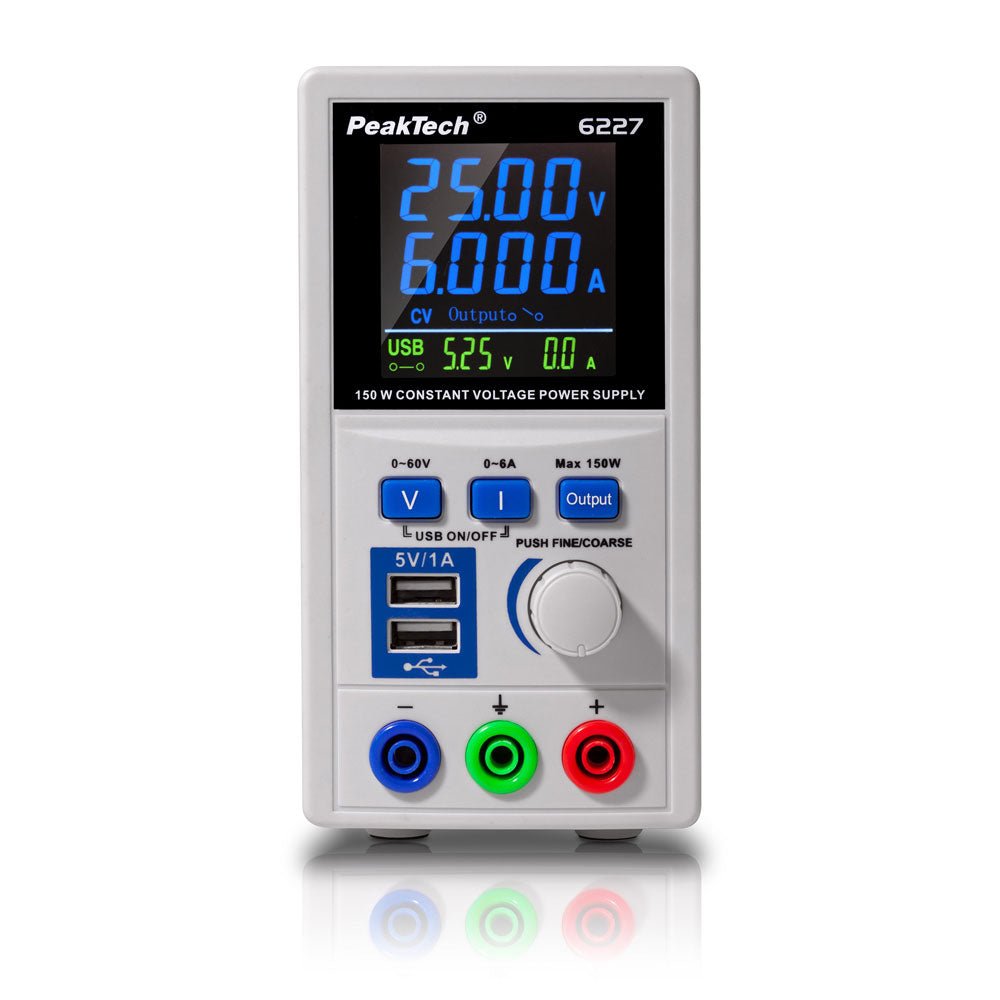

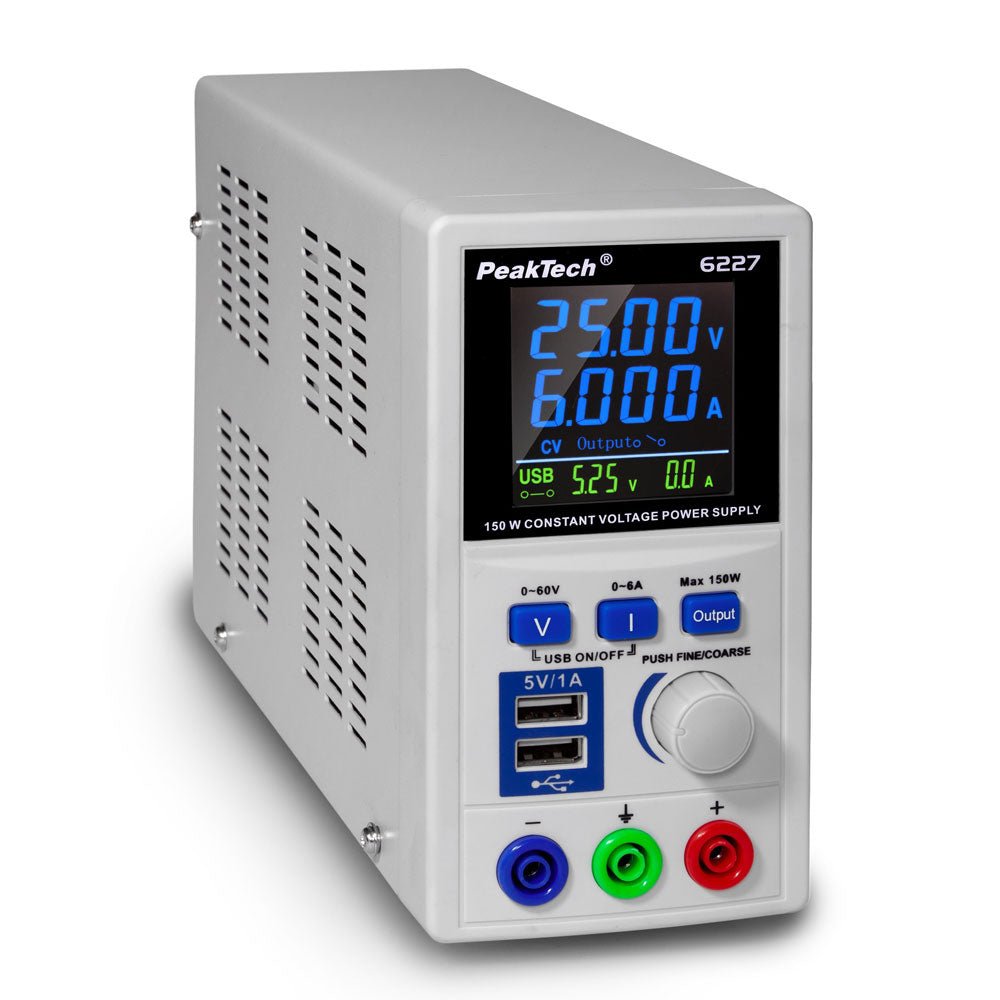

PeakTech 6227 DC Switching Power Supply (0-60 V, 0-6 A) with colour LCD & 2x USB

  • FabrikantPeakTech

Omschrijving

This laboratory power supply offers a controllable 0...60 V or 0...6 A DC main output with a maximum continuous power of 150 W. For developers, this laboratory power supply offers two switchable USB outputs with their own LCD display with voltage and current values.

If you use a load up to 2.5 A, you can set the output voltage up to 60 V. If you want to use a higher current up to 6 A, set the load to a maximum of 25 V. Of course, all stages are also adjustable in between, e.g. 30 V/5 A, 40 V/3.7 A or 50 V/3 A.

The current and voltage setting also can be done when the output is switched off. By pressing the knob for current or voltage, the setting resolution can be fine/coarse switched from 1 mA to 100 mA or 10 mV to 1 V.

Due to the high range of functions and the simple operation with the best price-performance ratio, this laboratory power supply is ideal for the education, hobby, development and service sector.

  • Blue LCD display showing the output voltage and current values
  • Green LCD display showing the USB output voltage and current values
  • 150 W constant output power
  • Adjustable voltage range: 0~60 V at 0~2.5 A and 0~25 V at 2.5~6 A
  • Voltage and current pre-selection with switchable output
  • C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load
  • Protection against short circuit, overload and overtemperature
  • Accessories: Power cable, Connection Leads and Manual

Output Voltage 0 ~ 60 V DC (@2,5 A)
Output Current 0 ~ 6 A DC (@ 25 V)
Output Power 150 W
Display Resolution (V) 10 mV
Display Resolution (A) 1 mA
Setting Resolution (V) 10 mV / 1 V switchable
Setting Resolution (A) 1 mA / 100 mA switchable
Ripple & noise ? 5 mV RMS; ? 20 mA RMS
Load regulation ? 0.05% + 5 mV, ? 0.5% + 5 mA
Line regulation ? 0.1% + 3 mV, ? 0.2% + 3 mA
Display accuracy +/- 0,5% + 5 dgt.
Protection Overload, overtemperature, short circuit
Operating voltage 115 / 240 V AC; 50/60 Hz
Dimensions (WxHxD) 80 x 160 x 260 mm
Weight 1.6 kg
Productformulier

This laboratory power supply offers a controllable 0...60 V or 0...6 A DC main output with a maximum continuous power of 150 W.... Lees meer

Nog 1 op voorraad

€ 129,95 incl. BTW
Leden € 116,96

      Details

      SKU: 19323
      EAN: 04250569404924

      Omschrijving

      This laboratory power supply offers a controllable 0...60 V or 0...6 A DC main output with a maximum continuous power of 150 W. For developers, this laboratory power supply offers two switchable USB outputs with their own LCD display with voltage and current values.

      If you use a load up to 2.5 A, you can set the output voltage up to 60 V. If you want to use a higher current up to 6 A, set the load to a maximum of 25 V. Of course, all stages are also adjustable in between, e.g. 30 V/5 A, 40 V/3.7 A or 50 V/3 A.

      The current and voltage setting also can be done when the output is switched off. By pressing the knob for current or voltage, the setting resolution can be fine/coarse switched from 1 mA to 100 mA or 10 mV to 1 V.

      Due to the high range of functions and the simple operation with the best price-performance ratio, this laboratory power supply is ideal for the education, hobby, development and service sector.

      • Blue LCD display showing the output voltage and current values
      • Green LCD display showing the USB output voltage and current values
      • 150 W constant output power
      • Adjustable voltage range: 0~60 V at 0~2.5 A and 0~25 V at 2.5~6 A
      • Voltage and current pre-selection with switchable output
      • C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load
      • Protection against short circuit, overload and overtemperature
      • Accessories: Power cable, Connection Leads and Manual

      Output Voltage 0 ~ 60 V DC (@2,5 A)
      Output Current 0 ~ 6 A DC (@ 25 V)
      Output Power 150 W
      Display Resolution (V) 10 mV
      Display Resolution (A) 1 mA
      Setting Resolution (V) 10 mV / 1 V switchable
      Setting Resolution (A) 1 mA / 100 mA switchable
      Ripple & noise ? 5 mV RMS; ? 20 mA RMS
      Load regulation ? 0.05% + 5 mV, ? 0.5% + 5 mA
      Line regulation ? 0.1% + 3 mV, ? 0.2% + 3 mA
      Display accuracy +/- 0,5% + 5 dgt.
      Protection Overload, overtemperature, short circuit
      Operating voltage 115 / 240 V AC; 50/60 Hz
      Dimensions (WxHxD) 80 x 160 x 260 mm
      Weight 1.6 kg
