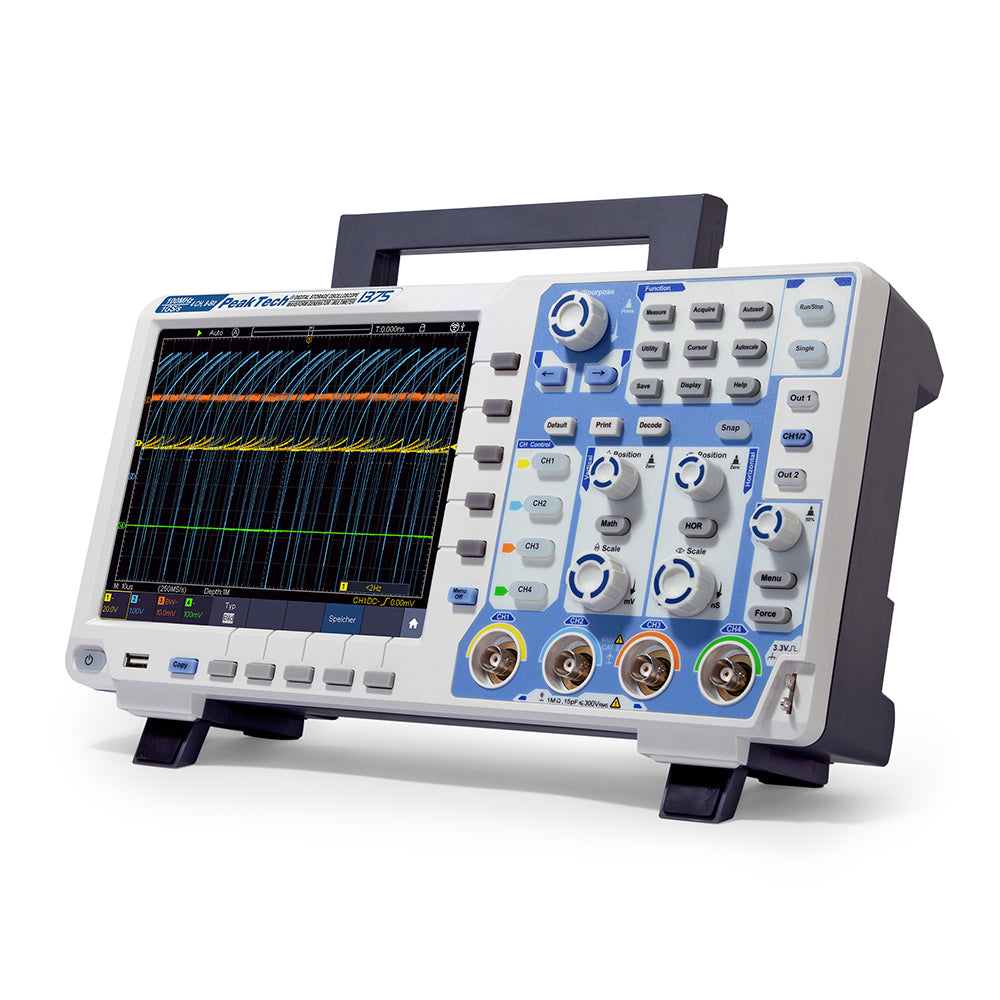

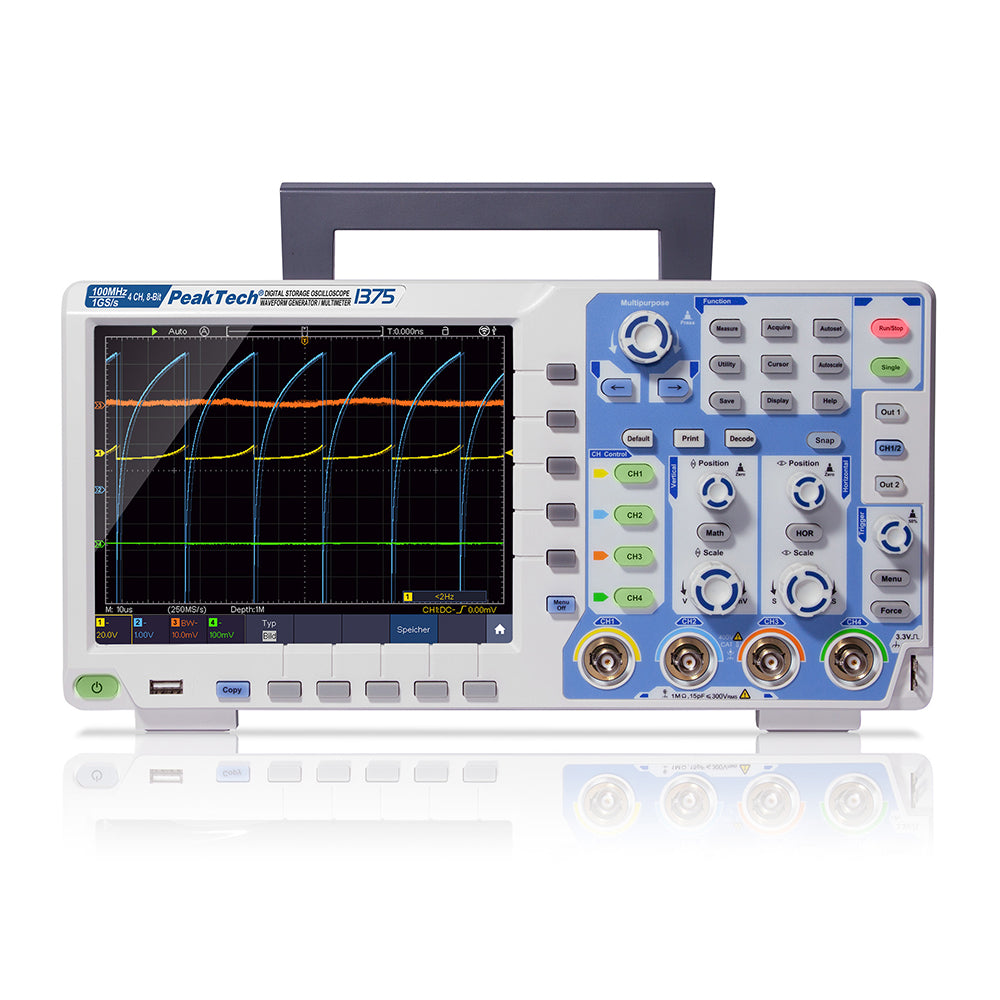

Omschrijving
4-channel digital storage oscilloscope of the latest generation with high-resolution TFT color display and comprehensive additional functions, such as the integrated digital multimeter, VGA-Output & CAN-Bus decoder.
For data transmission of the measured values to the PC or for remote control, various interfaces such as LAN, WiFi & USB (Host & Device) are available.
This series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.
Features
- High-resolution TFT color display with 800 x 600 pixels
- 20 cm (8“) TFT color display

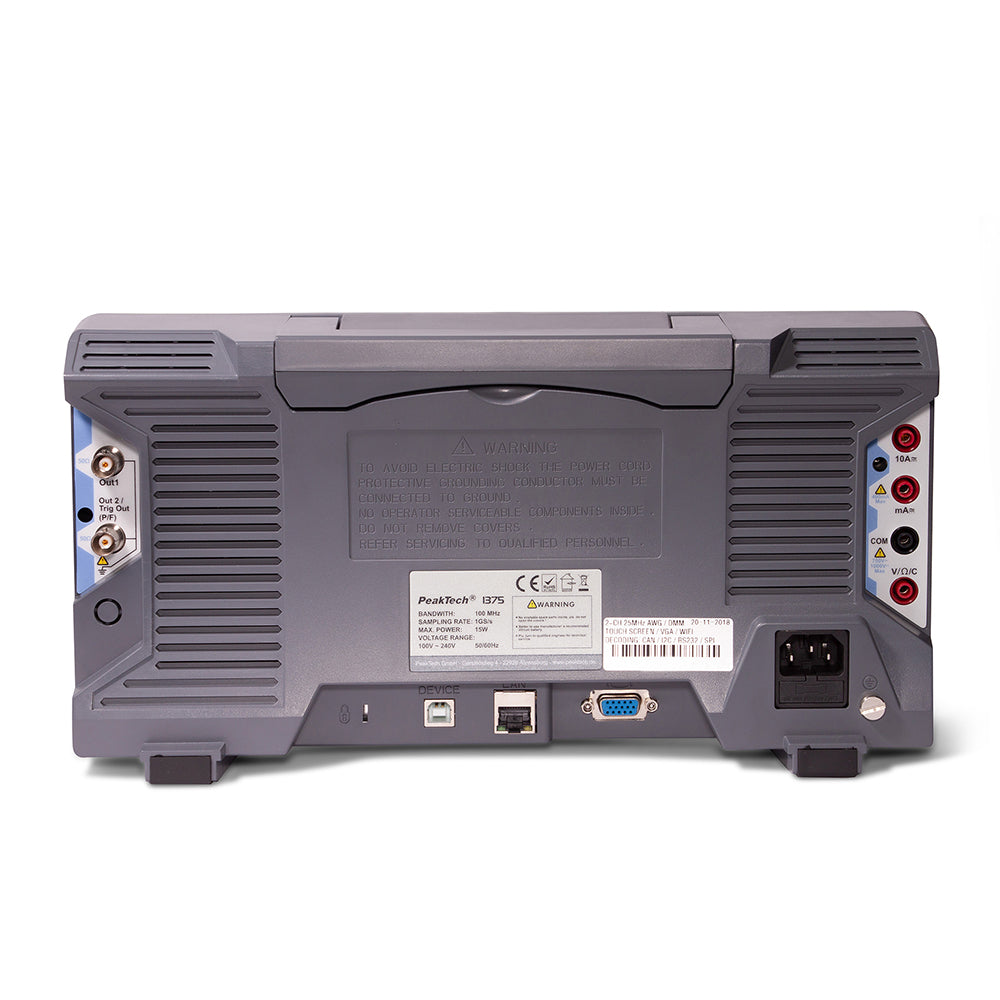

- LAN, WiFi & USB port for real time data transmission
- Saving of measured values and graphics directly onto the USB-disk
- Use the optional battery (Model: Akku 6) for off-grid operation
- Use the W-LAN interface for remote control in dangerous areas
- Integrated 2-Channel 25 MHz Arbitrary Waveform Generator
- Integrated digital multimeter with 4000 counts
- Extended trigger for CAN-Bus, RS232, I²C, SPI
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Record lenght of max. 40 Mio. points
- Automatic measurement modes and FFT function

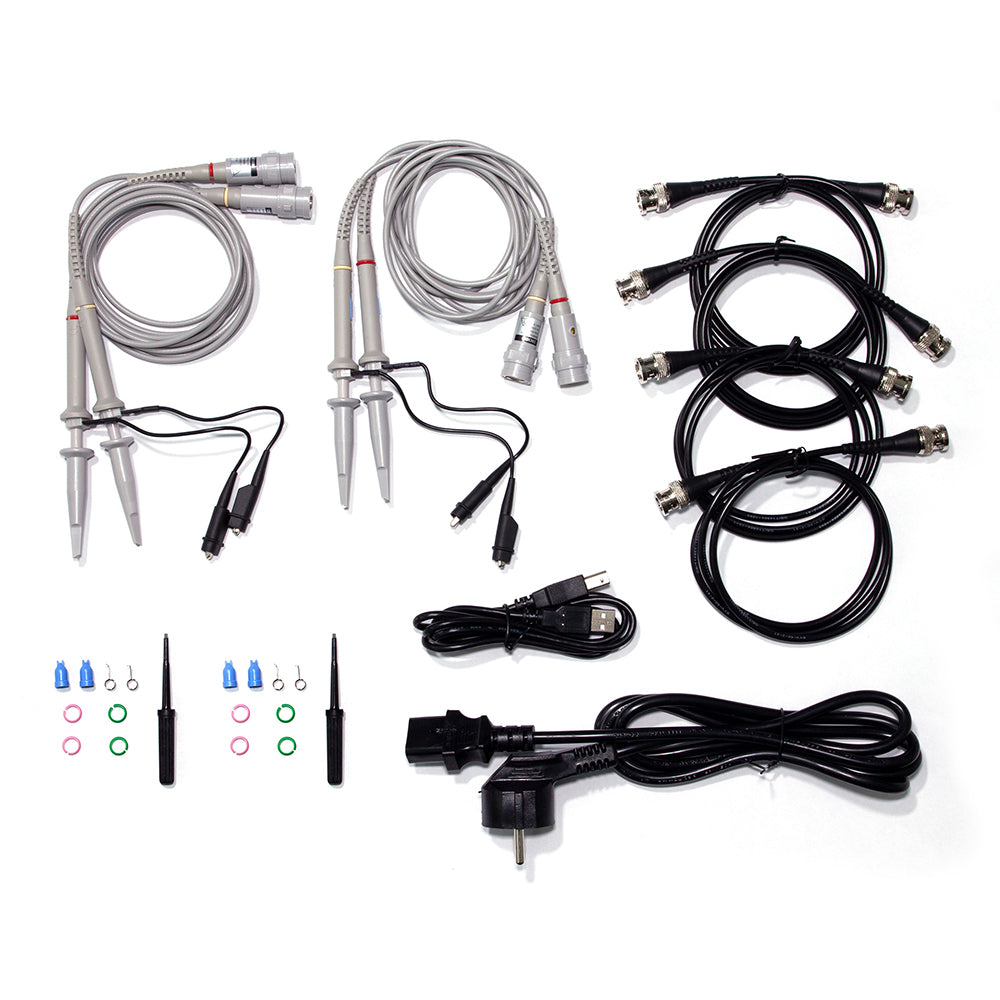

- Accessories: USB cable, software CD for Windows, power cable, 2 probes, carrying case and manual
Technical Specifications
| Bandwidth |
100 MHz |
| Display |
20 cm (8') Touchscreen color-TFT |
| Resolution |
800 x 600 Pixel |
| Channel |
4 CH |
| Vertical resolution |
8 bit |
| Specifications |
|---|
| Sampling rate (1/2/4 CH) |
1 GS/s; 500 MS/s; 250 MS/s |
| Record lenght max. |
40.000.000 points |
| Waveform refresh rate |
45.000 wfms/s |
| Rise Time |
≤ 3.5 ns |
| Vertical sensitivity |
1 mV - 10 V/div. |
| Horizontal scale |
2ns - 1000s/div. |
| Trigger type |
Edge, Video, Pulse, Slope, CAN-Bus, RS232, I²C, SPI |
| Trigger mode |
Auto, Normal, Single |
| General |
|---|
| Interfaces |
WiFi, LAN, USB Device, USB Host |
| Battery (optional) |
Model 'AKKU 6' |
| Arbitrary Waveform Generator |
2 CH, 25 MHz |
| Multimeter functions |
DCV,ACV,DCA,ACA,Ohm,Cap,Diode |
| Dimensions (WxHxD) |
340 x 175 x 90 mm |
| Weight |
ca. 2.6 kg |
