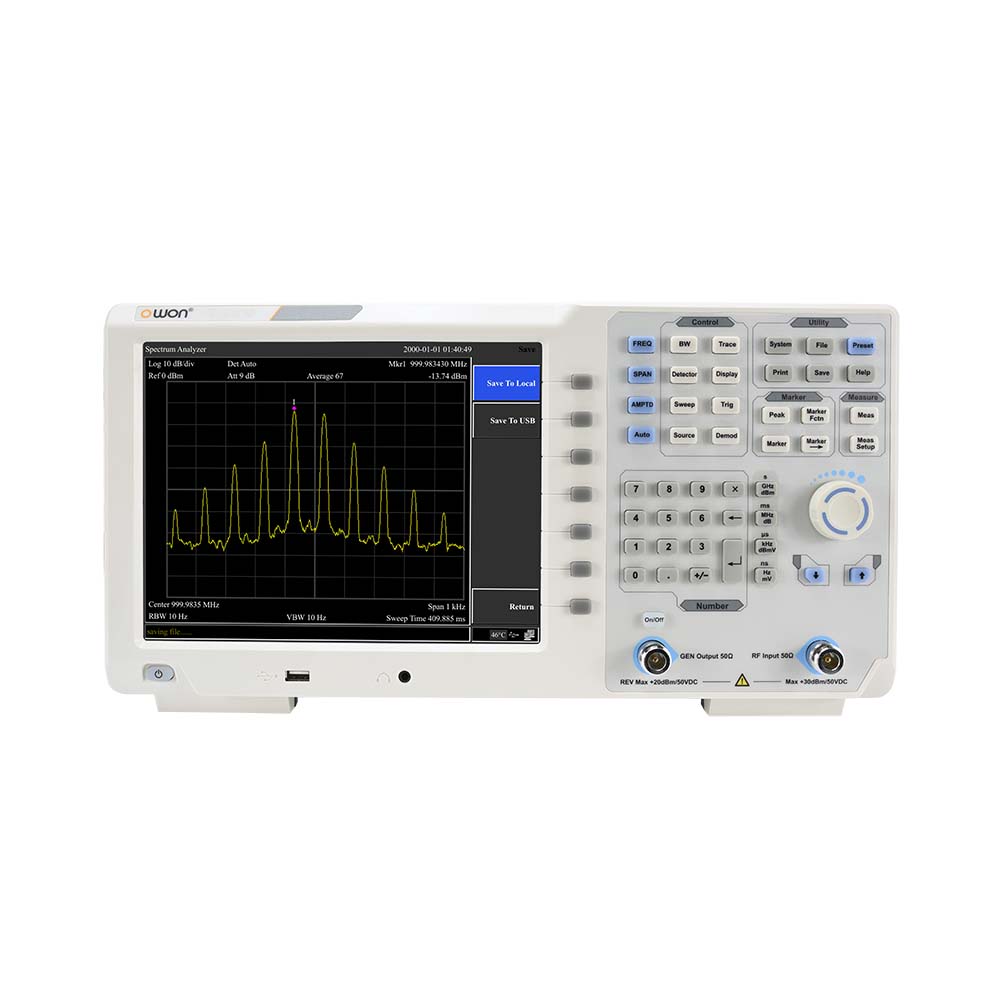

OWON XSA810 Spectrum Analyzer (9 kHz - 1 GHz)

  • FabrikantOWON

Omschrijving

The OWON XSA810-TG 9 kHz-1 GHz is a cost-effective spectrum analyzer with a tracking generator included and a frequency resolution of 1 Hz.

Specifications

Frequency
Frequency Range 9 kHz to 1 GHz
Frequency Resolution 1 Hz
Frequency Span Range 0 Hz, 100 Hz to the max. frequency range
Aging Rate <1 ppm/year
Frequency Counter Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz
Resolution Bandwidth (-3 dB) 1 Hz to 1 MHz @ 1-10 step, 1 MHz, 3 MHz
Video Bandwidth (-3 dB) 1 Hz to 1 MHz
Phase Noise (20 ? to 30 ?, c = 1 GHz)
Phase noise <-80 dBc/Hz @ 10 kHz offset
<-100dBc/Hz@ 100 kHz offset
<-115dBc/Hz@ 1 MHz-500MHz offset
Level Unit dBm, dBuW, dBpW, dBmV, dBuV, W, V
Trace Detectors positive-peak, negative-peak, sample, normal, RMS, average, quasi-peak
Trace Functions clear write, max hold, min hold, view, blank, average, trace math
VSWR 300 kHz to 1.5 GHz when input > 10 dB
nominal when input < 1.5dB
Display 9' 1280x800 pixels TFT LCD
Communication Interface USB host, USB device, LAN, earphone port, HDMI
Productformulier

The OWON XSA810-TG 9 kHz-1 GHz is a cost-effective spectrum analyzer with a tracking generator included and a frequency resolution... Lees meer

Geen beoordelingen

Nog 2 op voorraad

€ 899,00 incl. BTW
Leden € 809,10

    • Vandaag verstuurd? Je hebt nog Apr 17, 2024 17:00:00 +0200

    Details

    SKU: 19714
    EAN: 019714

    Omschrijving

    The OWON XSA810-TG 9 kHz-1 GHz is a cost-effective spectrum analyzer with a tracking generator included and a frequency resolution of 1 Hz.

    Specifications

    Frequency
    Frequency Range 9 kHz to 1 GHz
    Frequency Resolution 1 Hz
    Frequency Span Range 0 Hz, 100 Hz to the max. frequency range
    Aging Rate <1 ppm/year
    Frequency Counter Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz
    Resolution Bandwidth (-3 dB) 1 Hz to 1 MHz @ 1-10 step, 1 MHz, 3 MHz
    Video Bandwidth (-3 dB) 1 Hz to 1 MHz
    Phase Noise (20 ? to 30 ?, c = 1 GHz)
    Phase noise <-80 dBc/Hz @ 10 kHz offset
    <-100dBc/Hz@ 100 kHz offset
    <-115dBc/Hz@ 1 MHz-500MHz offset
    Level Unit dBm, dBuW, dBpW, dBmV, dBuV, W, V
    Trace Detectors positive-peak, negative-peak, sample, normal, RMS, average, quasi-peak
    Trace Functions clear write, max hold, min hold, view, blank, average, trace math
    VSWR 300 kHz to 1.5 GHz when input > 10 dB
    nominal when input < 1.5dB
    Display 9' 1280x800 pixels TFT LCD
    Communication Interface USB host, USB device, LAN, earphone port, HDMI
