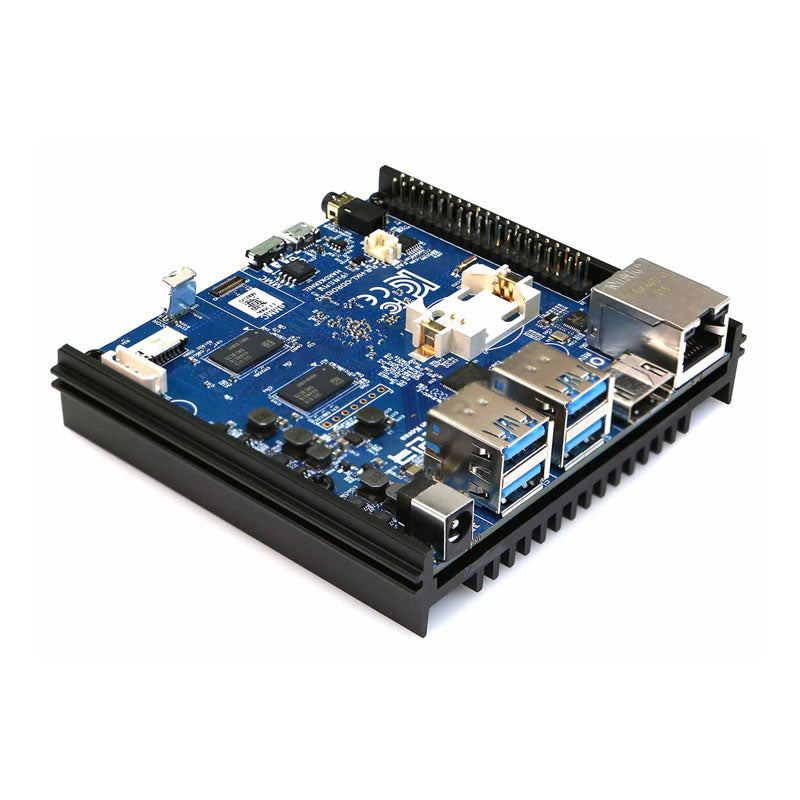

Odroid-N2+ (2 GB RAM) incl. Power Supply & Case

Omschrijving

The main CPU is based on big.Little architecture which integrates a quad-core ARM Cortex-A73 CPU cluster and a dual core Cortex-A53 cluster with a new generation Mali-G52 GPU. Thanks to the modern 12 nm silicon technology, the A73 cores run at 2.2 Ghz without thermal throttling using the stock metal-housing heatsink allowing a robust and quiet computer. The CPU multi-core performance is around 20% faster and the GPU is 10% faster than the N1. The N2+’s DDR4 RAM is running at 1320 Mhz with 1.2 volt low power consumption. The large metal housing heatsink is designed to optimize the CPU and RAM heat dissipation and minimize throttling. The CPU is placed on the bottom side of the PCB to establish great thermal characteristics.

Motherboard Specifications
Audio 1x Stereo Line Out (3.5 mm Jack)
1x HDMI digital output
1x Optional SPDIF optical output
Video Output 1x HDMI 2.1 (up to 4k 60 Hz with HDR, CEC, EDID)
Processor Amlogic S922X Processor (12 nm)
Quad-Core ARM Cortex-A73 CPU cluster + Dual Core Cortex-A53 cluster
RAM Memory 2 GB DDR4 RAM with 32 GB Bus Width / 2640 MT/s (PC4-21333 grade)
Graphics Mali-G52 GPU with 6x Execution Engines (846 MHz)
Storage 1x eMMC Module Connector (8 GB / 16 GB / 32 GB / 64 GB / 128 GB cards available)
1x microSD slot (DS / HS modes up to UHS-1)
I/O Connectors (Odroid) 4x USB 3.0 Host ports
1x USB 2.0 OTG port
1x Debug serial console
Network 1x GbE LAN ports (RJ45, supports 10/100/1000 Mbps) (Realtek RTL 8211F)
Common Parameters
Power 1x DC Jack 5.5 x 2.1 mm – DC 12 V/2 A included

Websites

Scope of Delivery

  • Odroid-N2+ (2 GB RAM)
  • 12 V/2 A Power Supply
  • Case (Aura Black)
Productformulier

The main CPU is based on big.Little architecture which integrates a quad-core ARM Cortex-A73 CPU cluster and a dual core... Lees meer

No reviews

SKU: 19421
Barcode: 019421

€ 99,95 Incl. BTW
Leden € 89,96

    • Vandaag verstuurd? Je hebt nog: Nov 29, 2023 17:00:00 +0100

    Omschrijving

    The main CPU is based on big.Little architecture which integrates a quad-core ARM Cortex-A73 CPU cluster and a dual core Cortex-A53 cluster with a new generation Mali-G52 GPU. Thanks to the modern 12 nm silicon technology, the A73 cores run at 2.2 Ghz without thermal throttling using the stock metal-housing heatsink allowing a robust and quiet computer. The CPU multi-core performance is around 20% faster and the GPU is 10% faster than the N1. The N2+’s DDR4 RAM is running at 1320 Mhz with 1.2 volt low power consumption. The large metal housing heatsink is designed to optimize the CPU and RAM heat dissipation and minimize throttling. The CPU is placed on the bottom side of the PCB to establish great thermal characteristics.

    Motherboard Specifications
    Audio 1x Stereo Line Out (3.5 mm Jack)
    1x HDMI digital output
    1x Optional SPDIF optical output
    Video Output 1x HDMI 2.1 (up to 4k 60 Hz with HDR, CEC, EDID)
    Processor Amlogic S922X Processor (12 nm)
    Quad-Core ARM Cortex-A73 CPU cluster + Dual Core Cortex-A53 cluster
    RAM Memory 2 GB DDR4 RAM with 32 GB Bus Width / 2640 MT/s (PC4-21333 grade)
    Graphics Mali-G52 GPU with 6x Execution Engines (846 MHz)
    Storage 1x eMMC Module Connector (8 GB / 16 GB / 32 GB / 64 GB / 128 GB cards available)
    1x microSD slot (DS / HS modes up to UHS-1)
    I/O Connectors (Odroid) 4x USB 3.0 Host ports
    1x USB 2.0 OTG port
    1x Debug serial console
    Network 1x GbE LAN ports (RJ45, supports 10/100/1000 Mbps) (Realtek RTL 8211F)
    Common Parameters
    Power 1x DC Jack 5.5 x 2.1 mm – DC 12 V/2 A included

    Websites

    Scope of Delivery

    • Odroid-N2+ (2 GB RAM)
    • 12 V/2 A Power Supply
    • Case (Aura Black)
