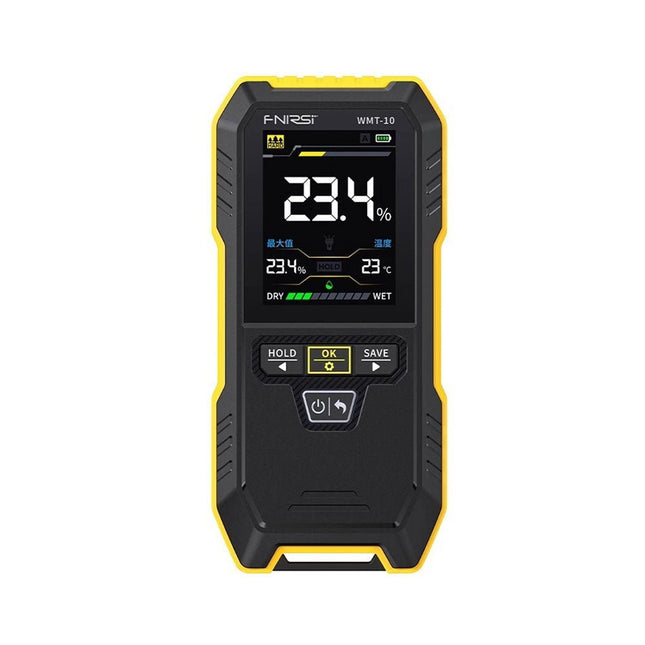

De WMT-10 Inductieve Houtvochtmeter beschikt over een 2,4-inch HD-kleurenscherm, speciaal ontworpen om tegemoet te komen aan de behoeften van de houtverwerkende industrie en houtgebruikers. Dit geavanceerde apparaat biedt nauwkeurige metingen van het houtvochtgehalte en ondersteunt vier veelzijdige meetmodi: hardhout, zachthout, gipsmuur en bakstenen muur. Specificaties Meettype Niet-destructief / pinloos / inductief / contactloos testen Weergave 2,4" TFT-kleurenscherm Resolutie 0,1% Diepte meten (max) 17 mm Sensorgrootte 40,5 x 40,5 mm Meetbereik Gipsmuur: 0~25% Bakstenen muur: 0~43% Zachthout: 0~75% Hardhout: 0~75% Meetfout ±1,5% Vochtigheidsalarm Geluidsalarm / Kleuralarm Automatische uitschakeling 5/10/15 minuten Gegevens opslaan en bekijken Bewaar en bekijk maximaal 30 gegevenssets Voeding 1000 mAh lithiumbatterij Bedrijfstemperatuur 0~40℃ Afmetingen 206 x 99 x 44 mm Gewicht 238 g Inbegrepen 1x FNIRSI WMT-10 houtvochtmeter 1x USB-kabel 1x Manual Downloads Manual

Lees meer minder

The FNIRSI DSO153 is a highly practical and cost-effective handheld oscilloscope with a real-time sampling rate of 5 MSa/s, 1 MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400 V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10 KHz). Equipped with a 2.8-inch 320x240 resolution HD LCD screen and a built-in 1000 mAh high-quality lithium battery, it can be used for about 4 hours when fully charged. Kenmerken 2.8-inch HD LCD display with 320x240 Resolution Portable Pocket Oscilloscope with Signal Generator Lightweight, mini-sized, assembled Faster sampling: 5 MS/s, 1 MHz bandwidth Versatile triggering: Single, Normal, Auto User-friendly: One-button setup Extended battery: 1000 mAh, 4 hours Multi-functionality: 10 KHz Sine Wave Generator Specificaties Bandwidth 1 MHz Sampling rate 5 MSa/s Vertical Sensitivity 10mV/Div – 20V/Div Time Base Range 500ns/Div – 20s/Div Voltage Range X1: ±40 V (Vpp: 80 V)X10: ±400 V (Vpp: 800 V) Trigger Method Auto / Normal / Single Coupling Method AC/DC Frequency Range 0-10 KHz Duty Cycle Range 0-100% Amplitude Range 0.1-3.3 V Display 2.8 inches (Resolution: 320 x 240) USB Charging 5 V/1 A Lithium Battery Capacity 1000 mAh Dimensions 99 x 68.3 x 19.5 mm Weight 100 g Inbegrepen 1x FNIRSI DSO153 1x P6100 High Voltage Oscilloscope Probe 1x Adapter 1x Alligator clip probe 1x USB charging cable 1x Lanyard 1x Manual Downloads Manual Firmware V1.1.8

Lees meer minder

De FNIRSI CTG-20 is een laagdiktemeter ontworpen voor het meten van de dikte van gegalvaniseerde coatings of coatings op metalen oppervlakken. Het kan niet-magnetische coatings (zoals verf) op magnetische materialen zoals staal of ijzer nauwkeurig meten, evenals coatings op niet-magnetische materialen zoals aluminium. Uitgerust met een ingebouwde precisiesonde en een oplaadbare lithiumbatterij, detecteert het apparaat automatisch substraateigenschappen en bepaalt de laagdikte met behulp van elektromagnetische inductie en wervelstroomeffecten. Dit robuuste instrument levert snelle en zeer nauwkeurige metingen, waardoor het ideaal is voor toepassingen in de productie, de chemische industrie, de automobielsector en andere testgebieden. Specificaties Meetbereik 0-1400 μm Nauwkeurigheid ±3% +2 μm Resolutieverhouding 0,1 µm Kalibratie Nulpuntkalibratie, meerpuntskalibratie Eenheid μm, mil Minimale convexe kromtestraal 5 mm Minimale convexe kromtestraal 25 mm Minimale meetgebieddiameter 20 mm Batterij 600 mAh lithiumbatterij Oplaadinterface USB-C Kenmerken Gegevensopslag, draaibaar scherm, plamuurpoedertest, automatische uitschakeling Afmetingen 115 x 48 x 18 mm Gewicht 83 g Inbegrepen 1x FNIRSI CTG-20 Laagdiktemeter 1x USB-kabel 1x Manual Downloads Manual

Lees meer minder

The FNIRSI DPOS350P is a 4-in-1 powerhouse in a sleek tablet form! This compact and portable device combines a 2-channel 350 MHz oscilloscope, a signal generator, a frequency response analyzer, and a spectrum analyzer – all in one. Whether you're in R&D, troubleshooting, or field testing, the DPOS350P delivers the tools you need to measure, generate, analyze, and visualize electronic signals with precision and clarity. Its responsive high-resolution touchscreen and intuitive controls make signal analysis fast, flexible and efficient. Kenmerken Powerful Multi-Function Integration 350 MHz 2-channel oscilloscope with 1 GSa/s real-time sampling 50 MHz signal generator with 14 standard + custom waveforms Spectrum analyzer (200 kHz-350 MHz): Perfect for EMI, RF & HF testing Frequency response analyzer up to 50 MHz High-Performance Waveform Capture 50,000 wfm/s refresh rate for real-time signal clarity 350 MHz bandwidth (single-channel mode) Detects rare and low-probability anomalies Crisp Display & Smooth Operation 7" IPS touchscreen (1024×600 resolution) Switch between grayscale and color temperature display Easy to operate in various test environments Reliable, Protected & Fast-Charging High-voltage protection up to 400 V Fast charging with QC18W (full charge in 2 hours) Built for stable long-term operation Data Storage & Export Save up to 500 waveform records + 90 screenshots USB export for easy reporting and offline analysis Specificaties General Display 7 inch (IPS full viewing angle) Resolution 1024 x 600 pixels Interaction mode Capacitive touch screen Total power consumption 10 W Power-on configuration 5 presets Charging QC18W, 12 V/1.5 A (USB-C) Battery 3.7 V, 8000 mAh lithium battery Battery life approx. 3 hours in operation, 5 hours standby Heat dissipation Air cooling Expansion interface USB data port Automatic shutdown 15~60 minutes / off Firmware upgrade Support .iso image upgrade Languages English / Portuguese / Russian / Chinese Dimensions 190 x 128 x 37 mm Oscilloscope Analog channels 2 Analog bandwidth 350 MHz Rise time 1ns Real-time sampling rate 1 GSa/s Memory depth 60 Kpts Input impedance 1 MΩ / 14PF Time base range 5ns ~ 50s Roll time base 50ms ~ 50s Vertical sensitivity 2 mV ~ 20 V (1X) Vertical range 16 mV ~ 160 V (1X) DC accuracy ±2% Time accuracy ±0.01% Input coupling DC / AC Probe attenuation 1X / 10X / 100X Hardware bandwidth limit 150M / 20M High resolution mode 8bit ~ 16bit Parameter measurements 12 types Cursor measurement Time, period, frequency, level, voltage Trigger detection Digital trigger Trigger channel CH1 / CH2 Trigger mode Auto / Single / Normal Trigger edge Rising edge / Falling edge Trigger suppression L1 ~ L3 Trigger level Manual / automatic 10% ~ 90% Screenshot storage 90 pictures Waveform storage 500 groups Background grid Display / hide Waveform movement Coarse adjustment / fine adjustment Overvoltage protection Withstand voltage 400 V Waveform brightness Adjustable Simple FFT display Yes Digital fluorescence Yes Color temperature display Yes X-Y mode Yes ZOOM time base Yes One-key automatic adjustment Yes One-key return to zero Yes Data browser Yes Signal Generator Waveform types 14 standard functions + captured waveform Frequency 0~50 MHz (sine wave only, other waveforms up to 10M/5M/3M) Amplitude 0~5 VPP Offset -2.5 V ~ +2.5V Duty cycle 0.1~99.9% Frequency resolution 1 Hz Amplitude resolution 1 mV Offset resolution 1 mV Duty cycle resolution 0.1% Customizable captured waveform 500 groups Frequency Response Analyzer Excitation signal frequency 100 Hz ~ 50 MHz Excitation signal amplitude 0~5 VPP Excitation signal offset -2.5V ~ +2.5V Excitation frequency count 20~500 Cursor measurement Frequency / gain / phase Operating mode Single / cyclic System calibration Yes Spectrum Analyzer Conversion method FFT FFT length 4K ~ 32K Frequency range 200 KHz ~ 350 MHz Level range -60 dBmV ~ +260 dBmV Cursor measurement Frequency / amplitude Marking parameter Maximum energy harmonic Waterfall chart Yes 3D waterfall chart Yes Automatic adjustment Yes System calibration Yes Inbegrepen 1x FNIRSI DPOS350P (4-in-1) 2x 350 MHz Probes 1x QC18W Fast Charger (EU) 1x USB Data Cable 1x Alligator Clip 1x Storage Bag 1x Manual Downloads Manual Firmware

Lees meer minder
